Vehicle Exhaust Air Cleaner
Home / Ambient Air Cleaners / Vehicle Exhaust
OVERVIEW
IAP Air Products offers ambient air cleaners designed for Vehicle Exhaust applications. They are industrial grade air filtration systems that effectively remove ambient pollutants without the need of a hose exhaust system. They have low upfront costs, with ease and low cost of maintenance. These units pull the air through a series of filters. These filters will capture the contaminants while allowing the clean air to pass through and go right back into the room. IAP is dedicated to doing our part to create safer environments for vehicle repair shops and trade schools. The air cleaners are available as a single-phase or 3-phase unit, depending on what is needed. Our units are incredibly easy to install when paired with the ceiling mount kit we offer. Our units come with the standard filter configuration of; Pleated Pre-filter, Bag Filter and Gas Phase Filters. Our units come with an optional Magnehelic gauge so that you can easily tell when it’s time to replace your filters. Lastly, our units have the option for a side access door to make replacing your filters as easy as possible.

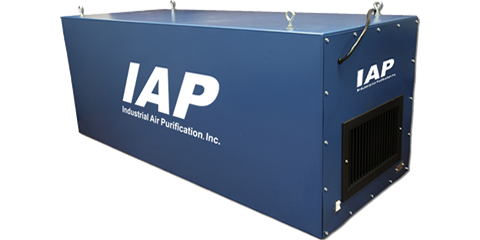

A-2500-3/4HP-1P-GP
Straight Through Air Flow
- Dimensions: 24" W x 24" H x 59" L
- Weight: 195 lbs
- Power: 115V/1/60
- Amps: 9.5
- Wiring: 3 Prong with 10 feet of cord
- CFM - Maximum: 2500
- Motor: 3/4 HP Direct Drive w/ Thermal Overload
- Cabinet: 16 Gauge Steel
- Finish: Blue Powder Coat
- Speed Control: Low and High Toggle Switch
- Air Flow: Straight through
- Decibels: 65 dBA at 5'
- Warranty: 1 year limited, excluding filters

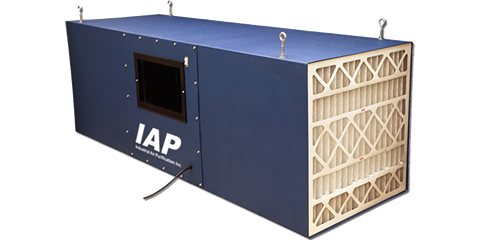

A-3000-3/4HP-1P-GP
T Flow Air Pattern
- Dimensions: 24" W x 24" H x 72" L
- Weight: 240 lbs
- Power: 115V/1/60
- Amps: 9.5
- Wiring: 3 Prong with 10 feet of cord
- CFM - Maximum: 3000
- Motor: 3/4 HP Direct Drive w/ Thermal Overload
- Cabinet: 16 Gauge Steel
- Finish: Blue Powder Coat
- Speed Control: Low and High Toggle Switch
- Air Flow: T Flow Pattern
- Decibels: 68 dBA at 5'
- Warranty: 1 year limited, excluding filters
- Optional: 2HP Motor
A-2500-3/4HP-1P-SA-GP
Side Access Door for Easy Filter Changes
- Dimensions: 24" W x 26" H x 67" L
- Weight: 240 lbs
- Power: 115V/1/60
- Amps: 9.5
- Wiring: 3 Prong with 10 feet of cord
- CFM - Maximum: 2500
- Motor: 3/4 HP Direct Drive w/ Thermal Overload
- Cabinet: 16 Gauge Steel
- Finish: Blue Powder Coat
- Speed Control: Low and High Toggle Switch
- Air Flow: Straight through
- Decibels: 65 dBA at 5'
- Warranty: 1 year limited, excluding filters
- Optional: 2HP Motor
