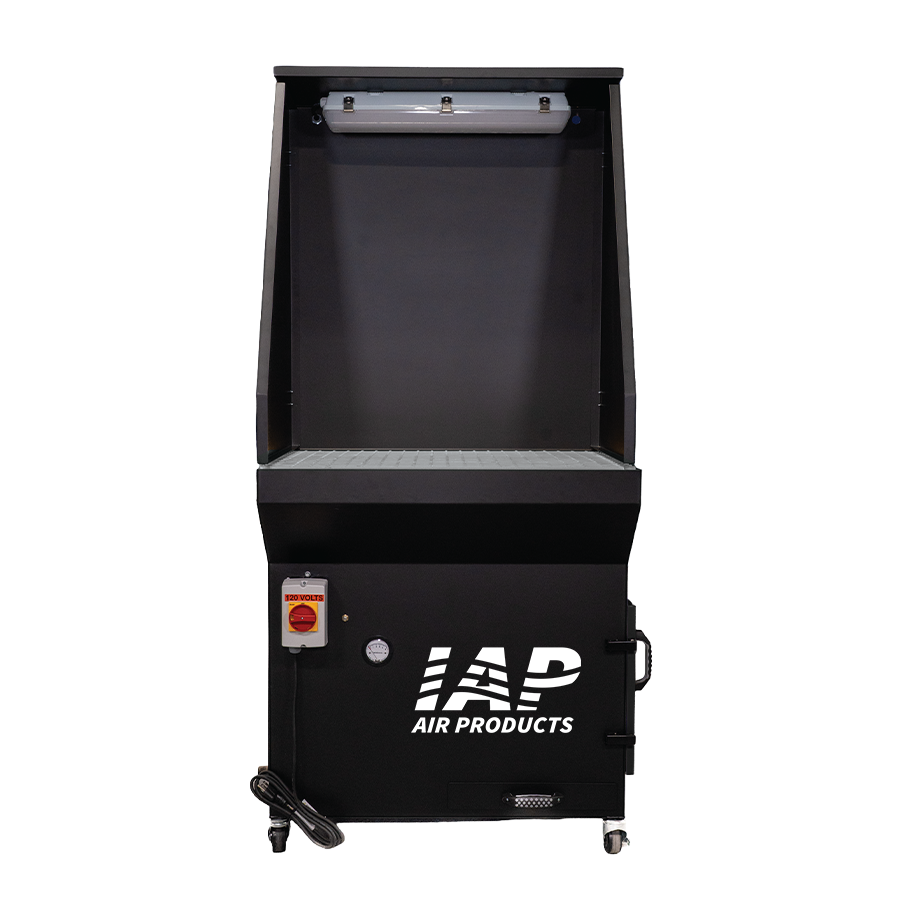

DownDraft Tables
OVERVIEW
The IAP Air products downdraft tables are compact, plug and play units. They boast 265 FPM of capture velocity. The tables help to ensure smoke, fumes, and dust are captured at the source and that your employees/students stay safe! The downdraft tables are great for high school, trade school or light manufacturing applications.
DownDraft tables
- Side and back walls included
- Built in timer activated pulse cleaning system
- 3/4 NPT connection, 90 psi required
- 12 gauge steel construction, powder coated black
- Unpainted grated table top
- Casters (2 lockable)
- LED light
- On/off for fan blower
- Built in spark arrestor
- Metal mesh pre-filter, washable
- 80/20 blend cellulose/polyester cartridge filter, MERV 13
- Unit is supplied with 10' power cord and plug
DOWNDRAFT TABLE SIZES
| Model | CFM | HP | Voltage | Work Surface Dimensions |
|---|---|---|---|---|
| DD-2X3-1.5HP-1P | 1200 | 1.5 | 120V/1P | 24"D x 36"W |
| DD-2X4-1.5HP-1P * | 1200 | 1.5 | 120V/1P | 24"D x 48"W |
* Same grid space as DD-2X3-1.5HP-1P. Table edges are just extended 6” on both sides.
DOWNDRAFT TABLE REPLACEMENT FILTERS
| Filter Number | Description |
|---|---|
| DD-2X3/4-F-M | Metal mesh filter |
| DD-2X3/4-F-C | Cartridge filter, cellulose/polyester, 180 sq ft of media, MERV 13 |
