PORTABLE FUME EXTRACTOR OVERVIEW

Designed with performance and portability in mind, our new portable fume extraction unit is built for the shops that never stay still. Whether you're welding, grinding, or tackling on-site maintenance, this unit brings clean air wherever the job takes you. Ideal for schools, weld bays, small shops and facility maintenance crews, this unit keeps clean air close and harmful fumes out of the way—no matter where work happens.

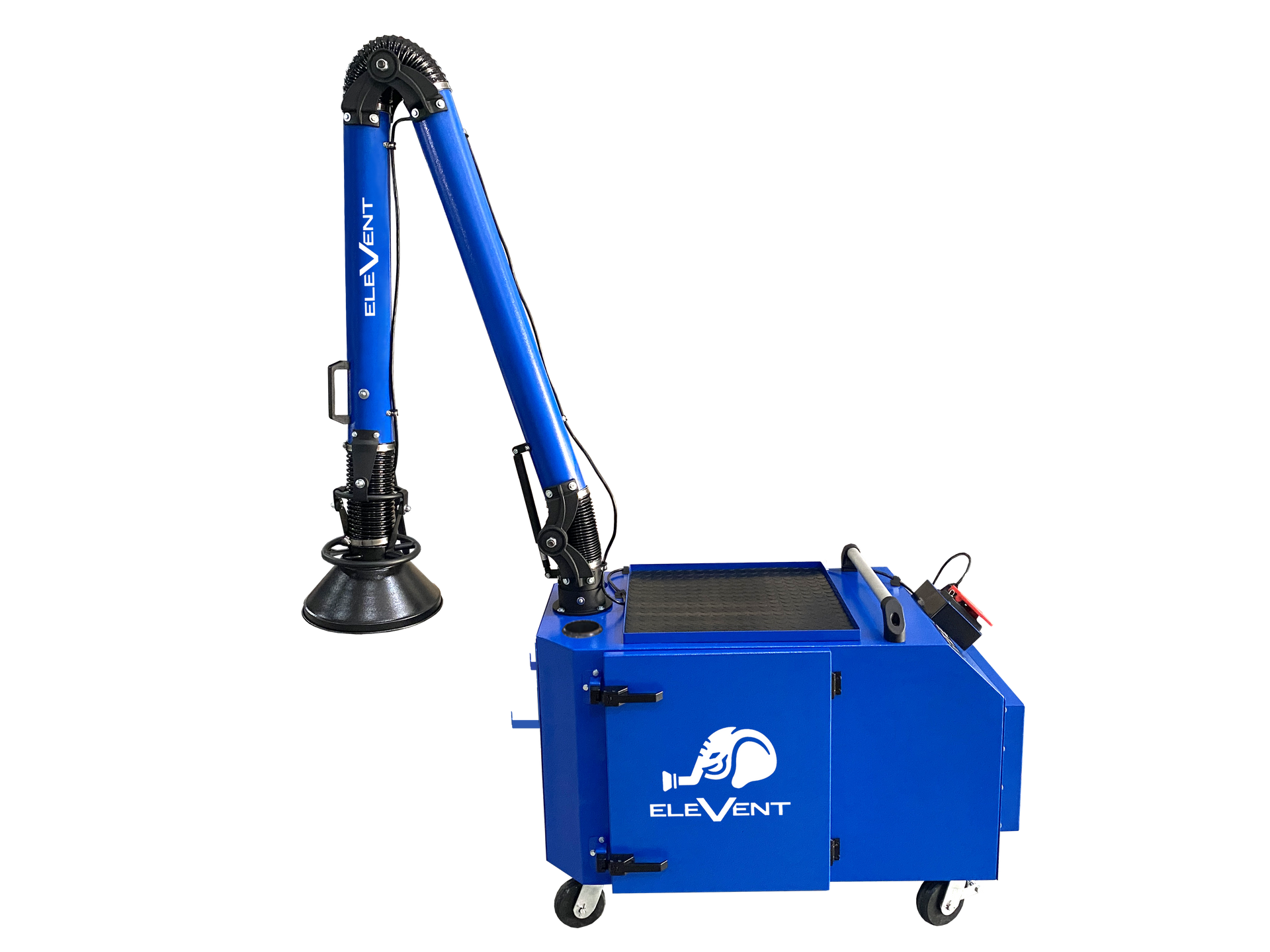

  • IAP ELEVENT portable fume extractor

Portable Fume Extractor

  • 1HP, 120V
  • 400 CFM at hood
  • Aluminum mesh pre-filter (washable)
  • Primary V-bank filter, MERV 15
  • Optional HEPA filter
  • 14 gauge steel construction
  • Includes (2) cup holders and tool tray
  • (4) Casters, (2) locking
  • 12' Power cord with 20 amp plug (requires 20 amp outlet/breaker)
  • 4" diameter x 8' fume arm included with light kit
  • Additional plug receptacle on machine
Ready to buy?

Portable Fume Extractor

SKU Nominal Airflow Power Supply Drawings/Specs
ELEVENT 400 cfm 120V/1 Download

Portable Fume Extractor Features

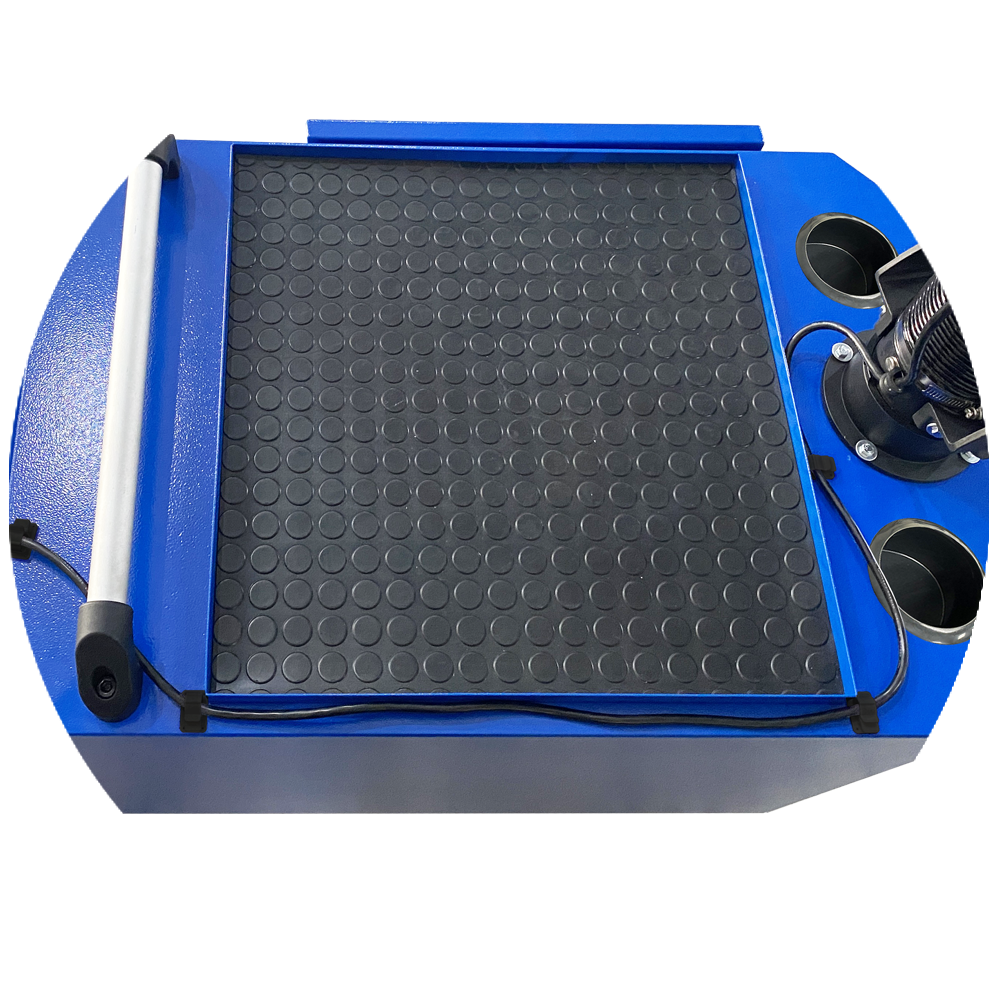

IAP ELEVENT Features

Cup Holders & Tool Tray

Button

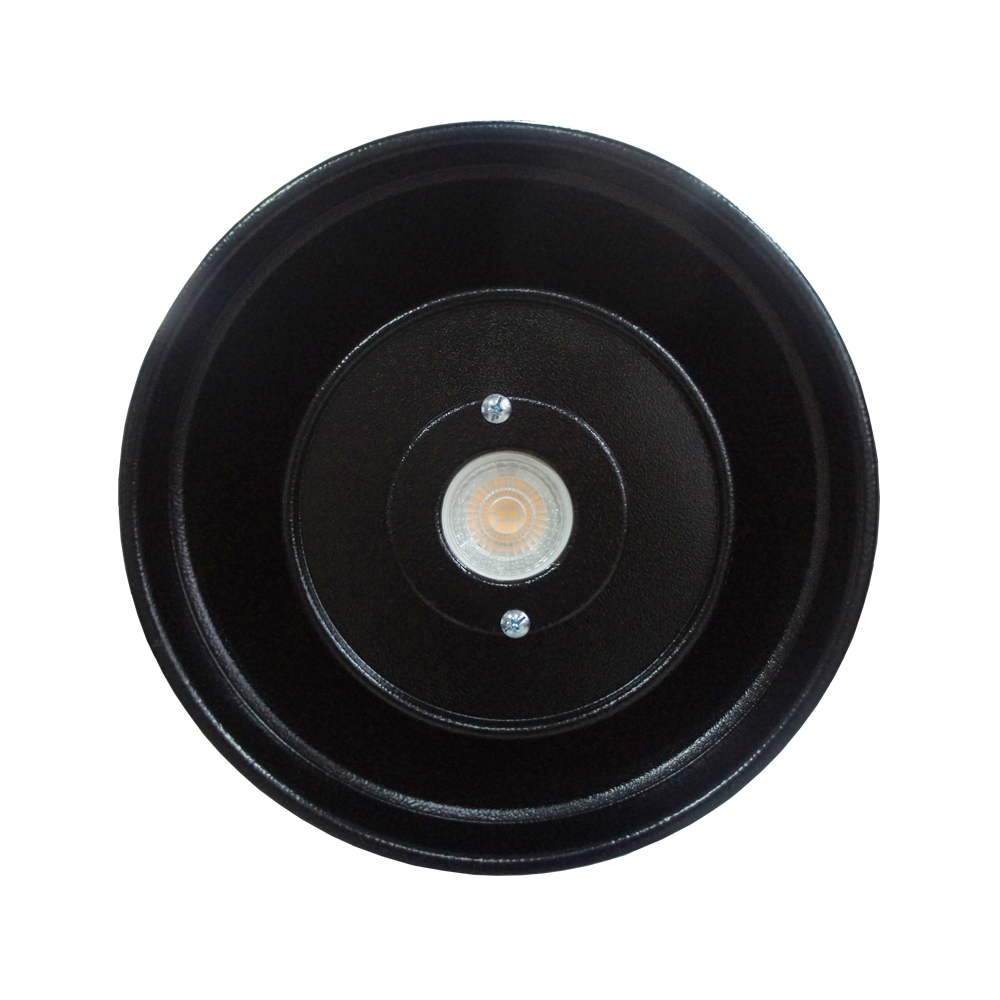

IAP ELEVENT Oversized hood

Oversized Hood and Light Kit

Button

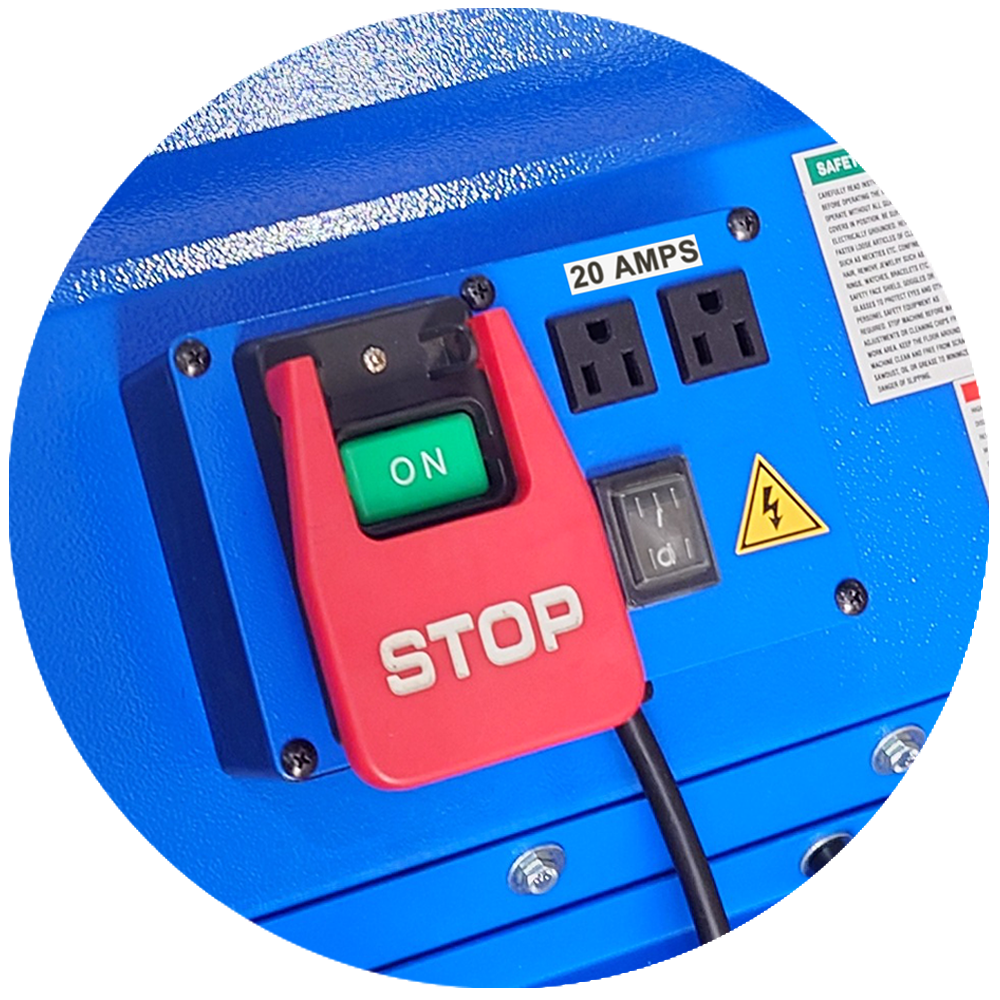

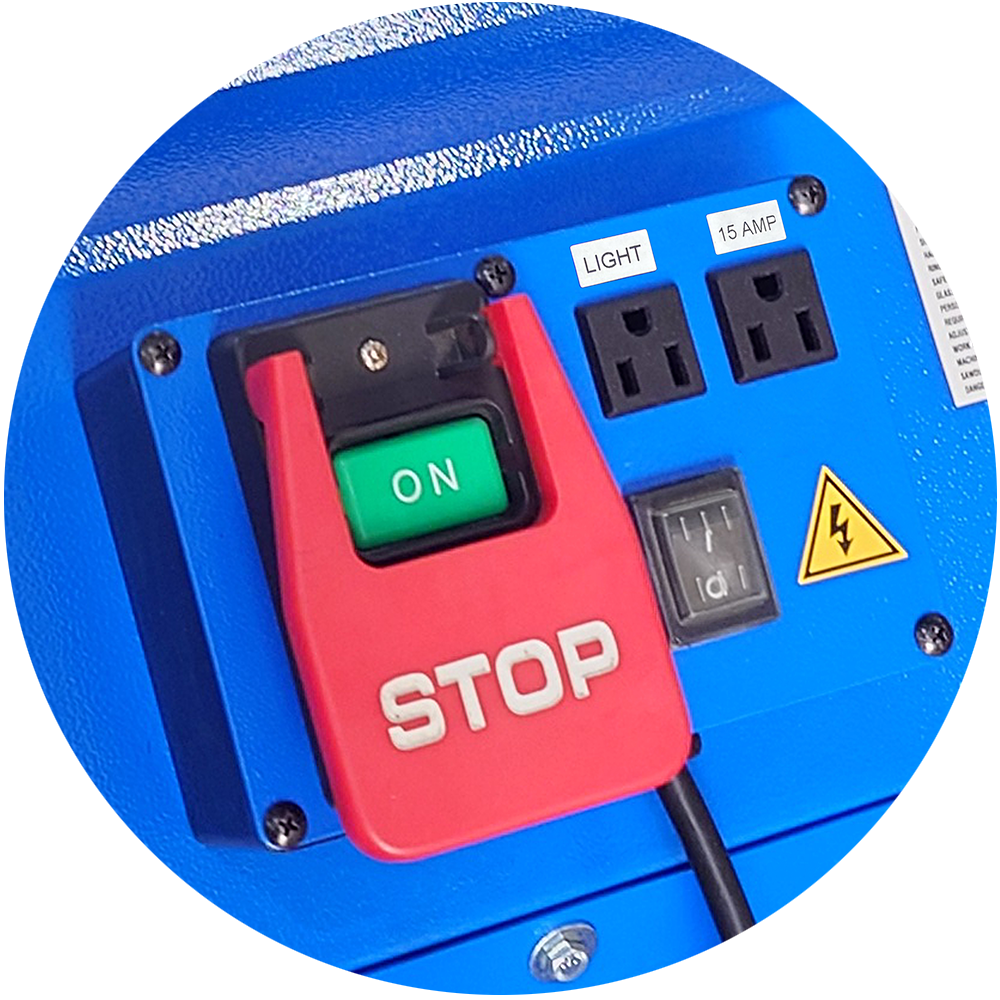

IAP ELEVENT Power Unit

Power and Plugs

Button

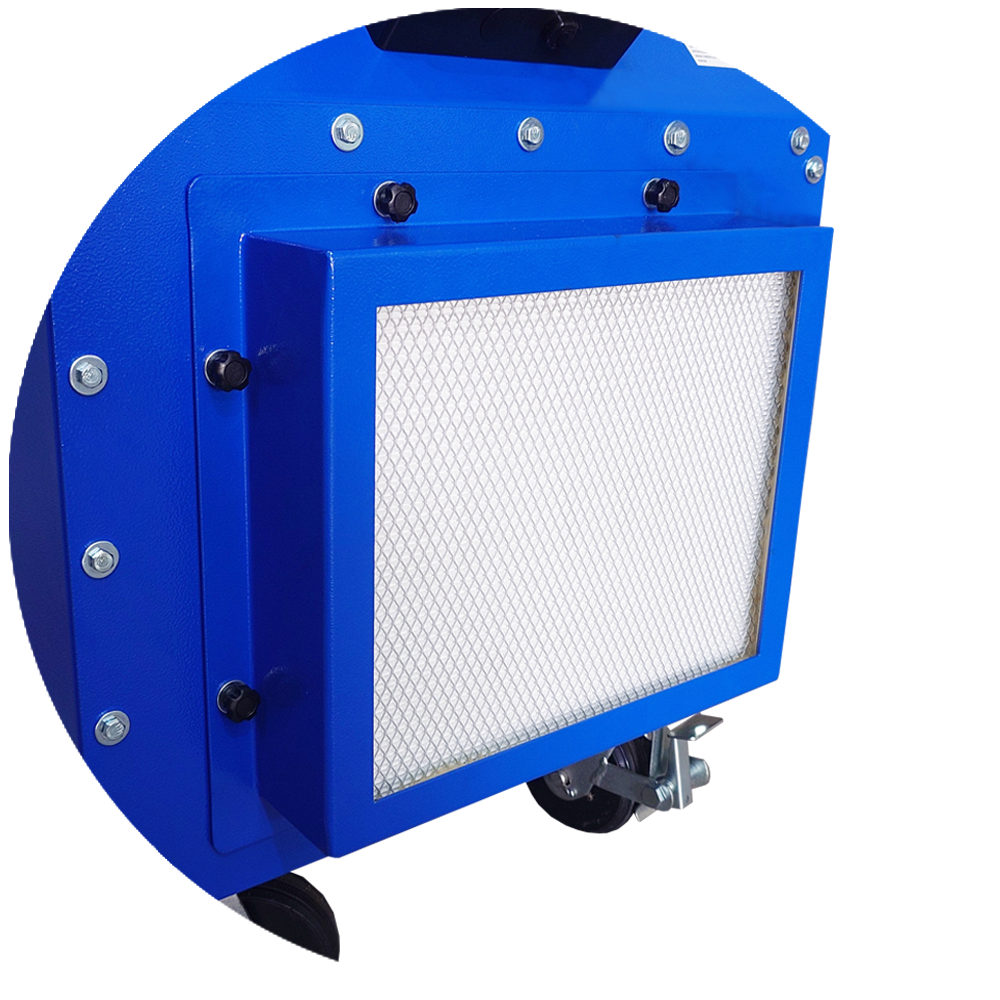

IAP ELEVENT HEPA Filter

Why Choose ELEVENT Portable fume Extractors?

They are ready to move

ELEVENT is a compact, portable fume extractor designed to provide source capture wherever the work takes place. Its mobile design makes it easy to move between welding stations, maintenance areas, training spaces and other applications where a permanent fume extraction system isn't practical.


They are built for welding schools & light-duty applications

ELEVENT portable welding fume extractors are an ideal solution for high schools, technical schools, maintenance shops, fabrication areas and light-to-medium-duty welding applications. It's designed for applications that need reliable fume extraction without the cost and complexity of a large stationary system.


They have 400 CFM of fume capture at the hood

ELEVENT is designed around the airflow that matters most—the airflow at the source. The 4" fume arm delivers approximately 400 CFM at the hood, providing strong source capture directly where welding fumes are generated. Unlike systems that primarily advertise blower CFM, ELEVENT focuses on the airflow available where it actually matters.


They have a powerful filtration system in a compact package

ELEVENT combines a compact mobile design with a large V-Bank main filter containing approximately 162 square feet of filter media. This provides substantial filtration capacity while keeping the unit small enough to move around the shop. An optional HEPA filter is also available for applications requiring higher-efficiency filtration.


They provide an affordable welding fume extraction solution

ELEVENT was designed to make professional welding fume extraction more accessible. It provides source-capture performance and industrial-style filtration in a simple, affordable package, making it an excellent option for schools, small shops, maintenance departments and other facilities looking for portable welding fume extraction without the cost of a larger system.


Not sure what you need?

Contact us with all your fume extraction questions → We'll help select the right products for your particular application.

FAQ's

  • What is a portable fume extractor?

    A portable fume extractor is a mobile filtration system designed to capture fumes, smoke, dust and other airborne contaminants close to where they are generated. Unlike a permanently installed exhaust system, a portable fume extractor can be moved between workstations, making it ideal for changing work areas, temporary applications, small shops, schools and maintenance facilities.

  • What applications can portable fume extractors be used for?

    Portable fume extractors can be used for a wide range of applications, including welding fume extraction, grinding, soldering, maintenance welding, laser processing, chemical and solvent fumes, light dust and other particulate-generating processes. The appropriate filter and airflow configuration depends on the specific contaminant and application.

  • How much airflow does the IAP ELEVENT portable fume extractor provide?

    The IAP ELEVENT provides approximately 400 CFM at the fume extraction hood. It uses a 1 HP, 120V motor and includes an 8-foot-long, 4-inch-diameter fume extraction arm. Measuring airflow at the hood provides a more useful indication of actual source-capture performance than relying solely on the blower's rated airflow.

  • Are portable fume extractors suitable for welding schools and high schools?

    Yes. Portable fume extractors are well suited for welding schools, high school CTE programs, technical colleges and training facilities where welding stations may change frequently. A portable unit can be moved from booth to booth or workstation to workstation without requiring permanent ductwork throughout the welding lab.

  • Can a portable fume extractor be used for grinding?

    Yes. Portable fume extraction systems can be used for certain light grinding applications where capturing dust and particulate near the source is practical. The required airflow, hood configuration and filtration should be selected based on the type and quantity of material being generated.

  • What type of filter does a portable fume extractor use?

    Filter configuration depends on the model and application. The IAP ELEVENT portable fume extractor uses a washable aluminum mesh pre-filter and a MERV 15 V-bank primary filter, with an optional HEPA filter. Other IAP mobile extractors can be configured with additional filtration, including HEPA and activated carbon, depending on the contaminants being captured.

  • Are portable fume extractors good for welding?

    Yes. Portable welding fume extractors provide source capture by positioning a fume extraction arm near the welding operation. This allows welding smoke and fumes to be captured close to the point where they are generated, before they migrate throughout the workspace. Portable units are especially useful when welding stations move or permanent ductwork is impractical.

  • When should I use a portable fume extractor instead of a fixed fume extraction system?

    A portable fume extractor is a good choice when workstations change frequently, permanent ductwork is impractical, only a small number of workstations require extraction or the facility needs supplemental or temporary source capture. Fixed fume extraction systems may be more appropriate for facilities with permanent workstations and a larger number of consistently used extraction points.

  • Can portable fume extractors be used for laser welding or laser processing?

    Yes, portable fume extraction can be an effective option for certain laser welding, laser engraving, and laser processing applications. Source capture should be positioned as close as practical to the process, and filtration should be selected based on the specific material and contaminants being generated. IAP offers portable systems as well as fixed fume extraction options for laser applications.

  • How do I choose the right portable extractor for my application?

    Choosing the right portable fume extractor depends on the contaminant being generated, the application, required capture distance, airflow, filtration requirements and how frequently the unit will be used. Welding, grinding, laser processing, chemical fumes, and solvent applications can require different filtration and airflow configurations. IAP can help determine the appropriate portable extraction system based on your specific application.
