WELDING BOOTH OVERVIEW

Fume extraction welding booths are designed for welding trade schools, technical colleges and facilities needing a welding solution. The IAP welding booths or WELDSHELL are designed to work with our other products, such as our hanging fume extraction arms. Together these provide a system for the extraction and filtration of weld fume, smoke and pollution control. Our weld booths are high quality and are designed for rigorous use in academic settings such as trade school welding labs or technical colleges that teach advanced welding courses. These welding booths can be used individually or customized in groups and are offered in various sizes.

Made in USA
  • IAP Weld Shell weld booth
    Write your caption here

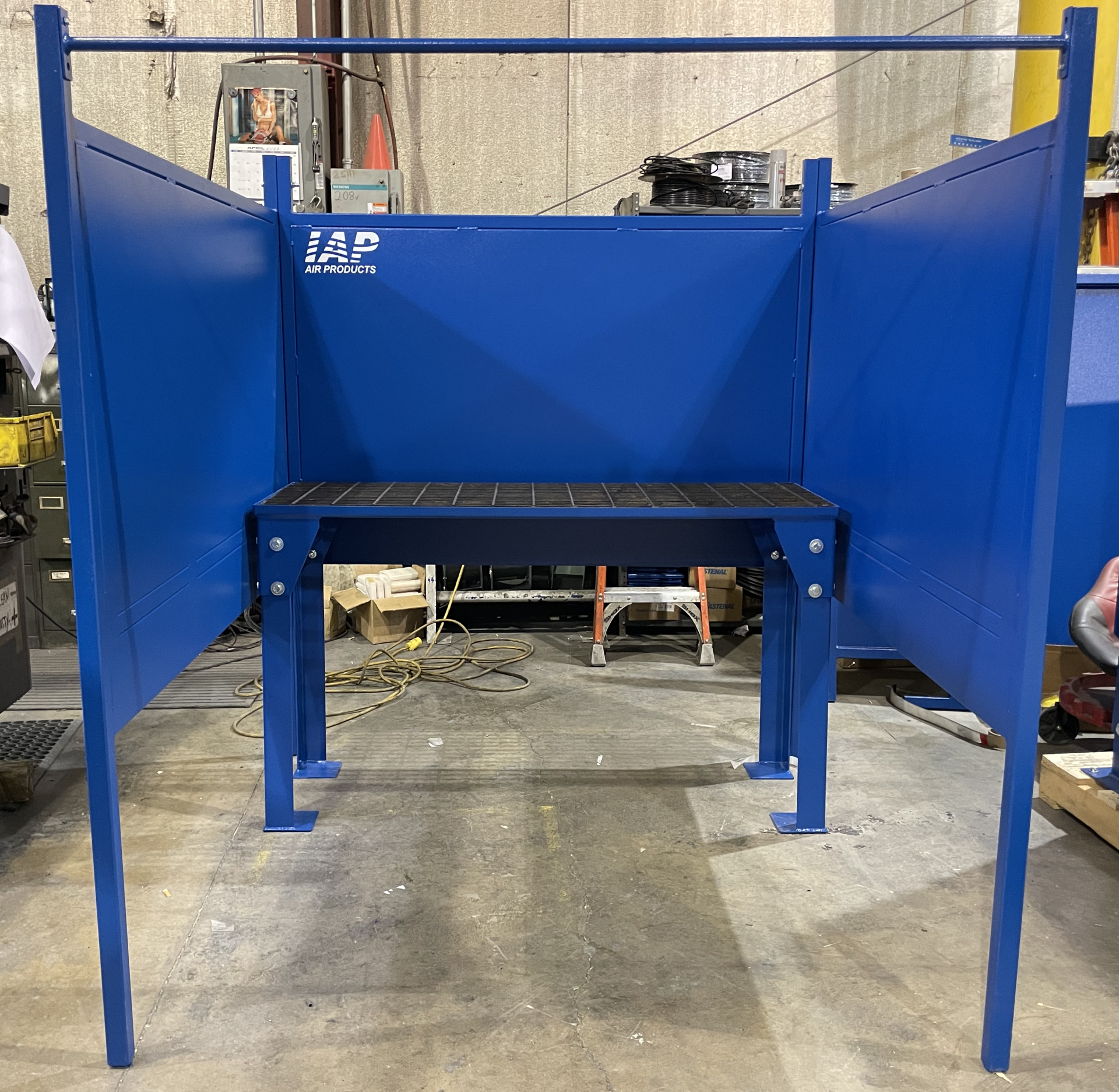

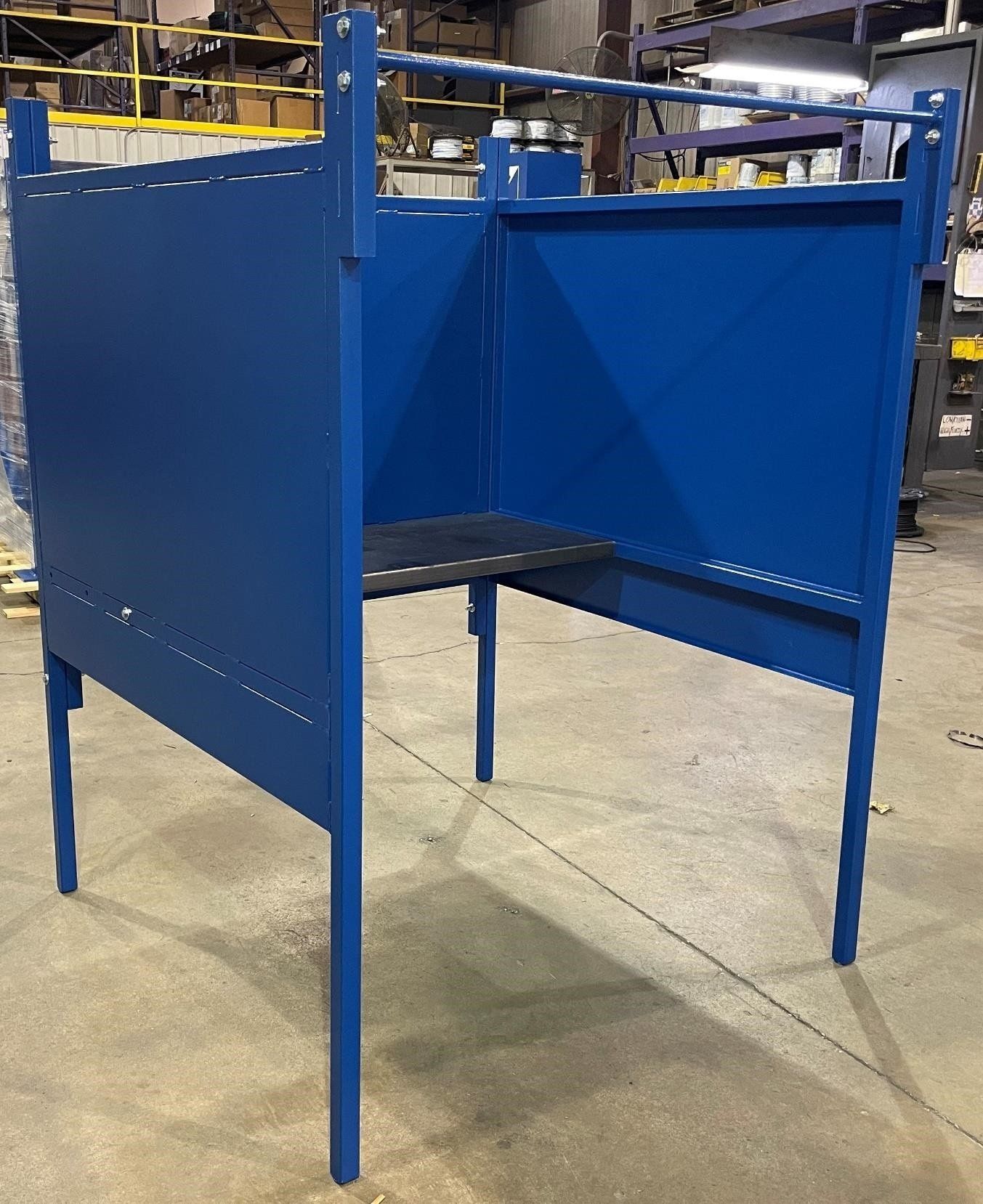

WELDSHELL Welding Booth

  • Walk in booth, 3 piece construction, 2 side/1 back panel
  • 14 gauge frame construction
  • Curtain rod
  • Powder coated
  • Adjustable feet for leveling
  • Fixed rear shelf 20"D, 14 gauge hot rolled construction (unpainted)
  • Hanging fume arm connection bracket option
  • Weld curtain option
  • LED light kit option
  • Individual booth or customizable groupings
REQUEST PRICING

WELDING BOOTH SIZES

SKU Inside Dimensions Outside Dimensions Std Height
WELDSHELL-0404 48"W x 48"D 51"W x 49.5"D 78"
WELDSHELL-0505 60"W x 59.5"D 63"W x 61"D 78"
WELDSHELL-0606 71.5"W x 71.5"D 74.5"W x 73"D 78"


Individual booths or custom layouts are available, as well as single walls.

Booth heights and features are also customizable.

Welding Booth Options

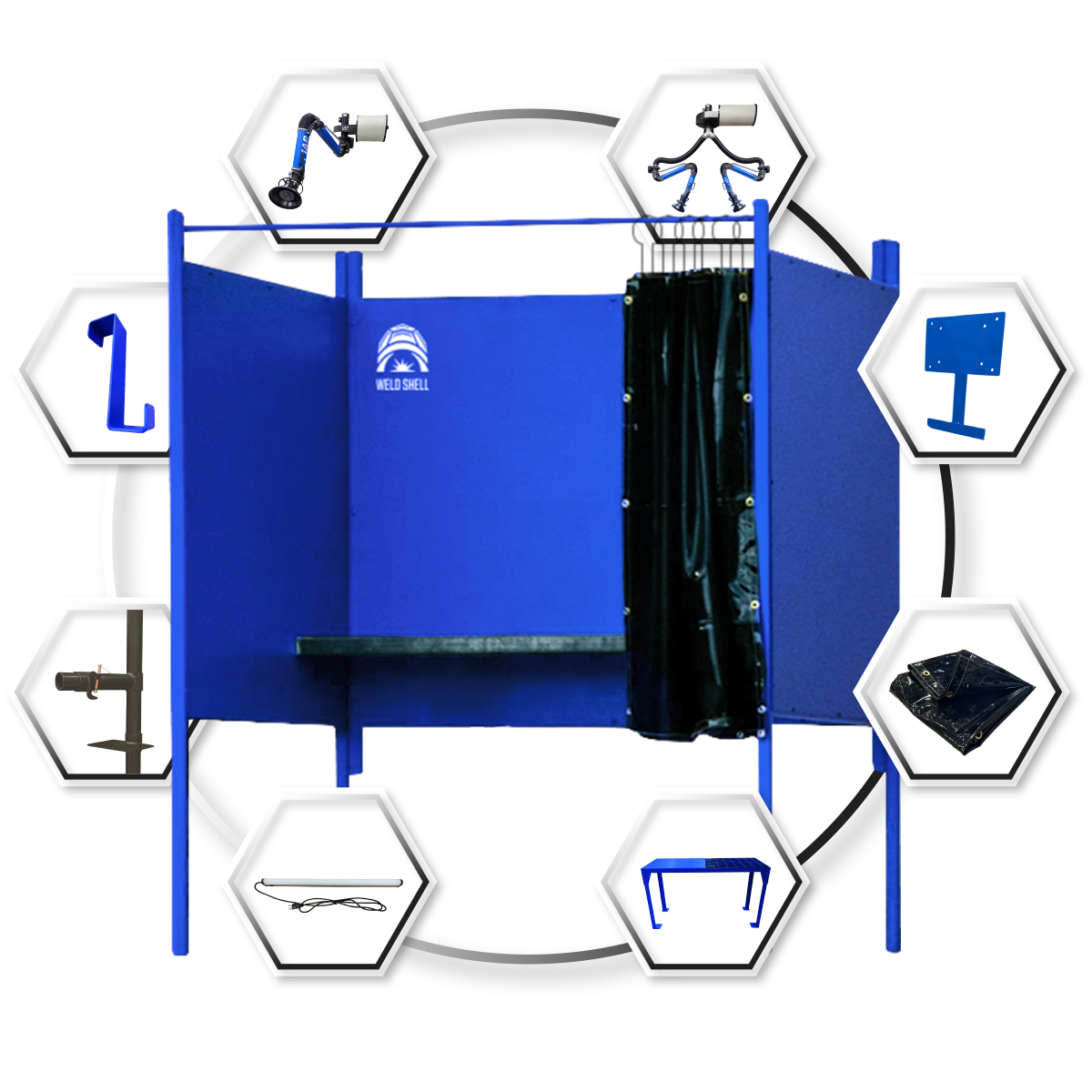

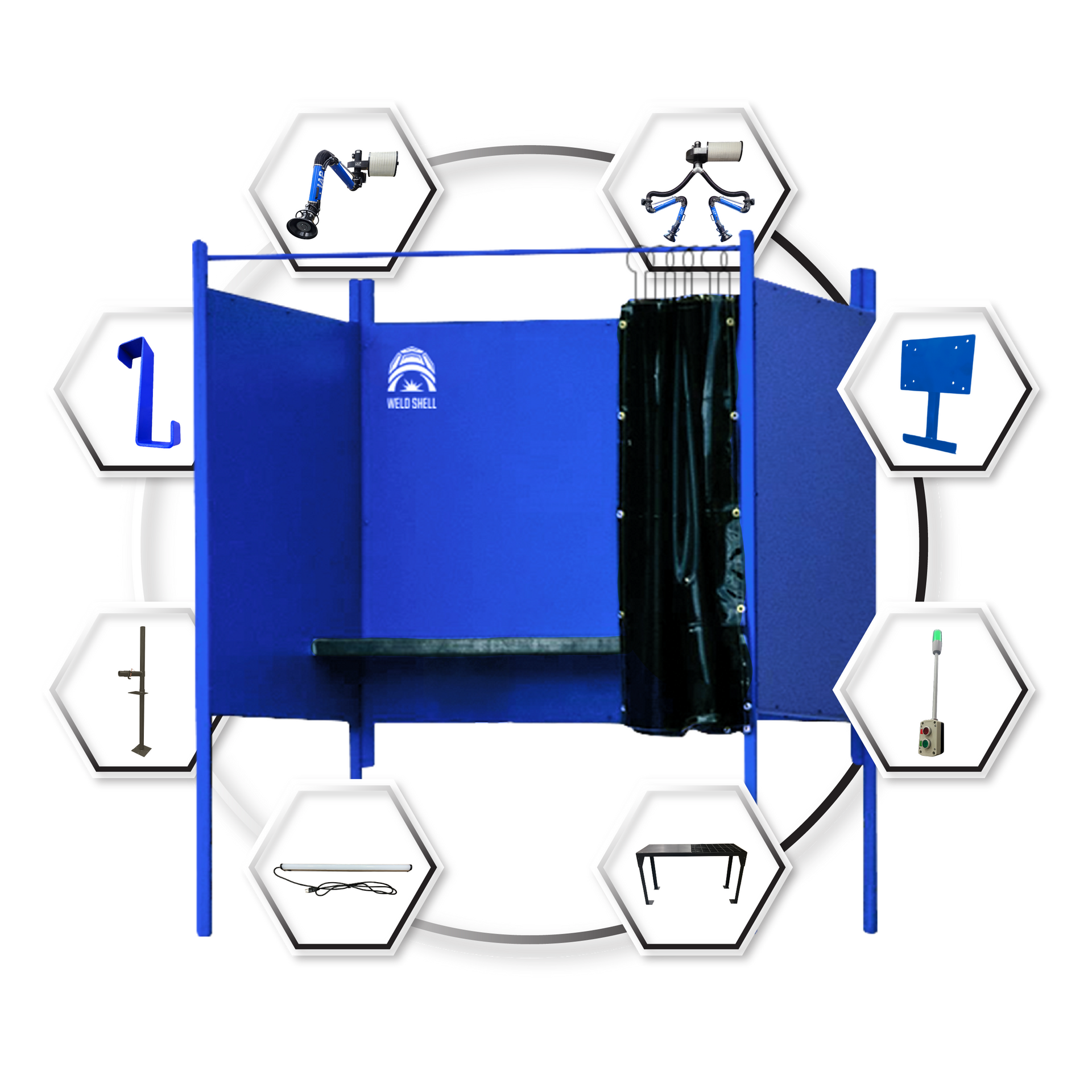

WELDSHELL Welding booths by IAP, ideal for trade schools and technical colleges needing a welding solution.

WELDING BOOTH OPTIONS


Description SKU
Fume Arm Filtration FAF
Dual Arm Filtration FAF-DUAL
Weld Curtain WELDSHELL-WC
Bracket for Fume Arm WELDSHELL-BR
Student Safety Light WELDSHELL-SSAL
J Hook WELDSHELL-JH
LED Light WELDSHELL-LK
Pipe Weld Stand WELDSHELL-PWS
Stand Alone Table WELDSHELL-SAT

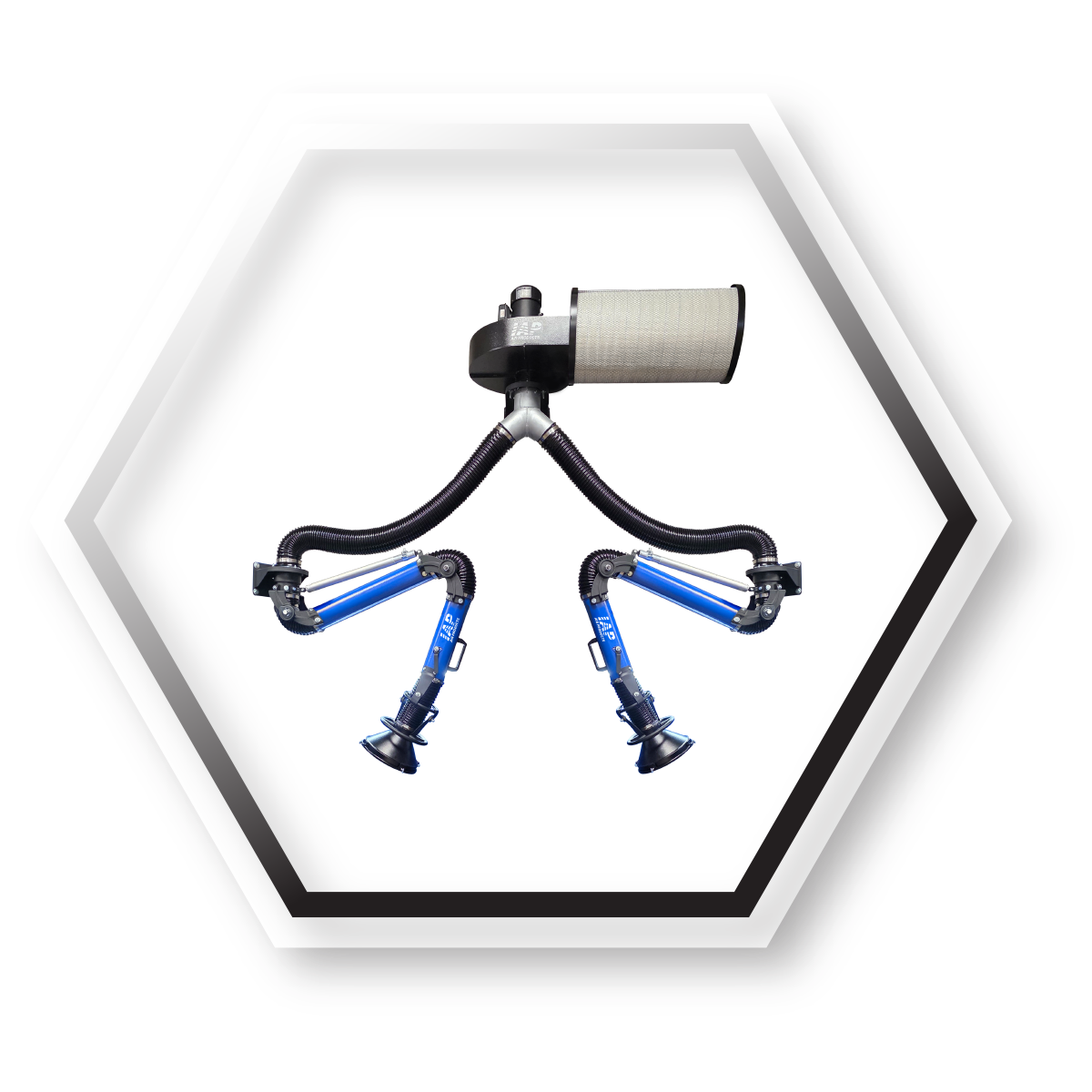

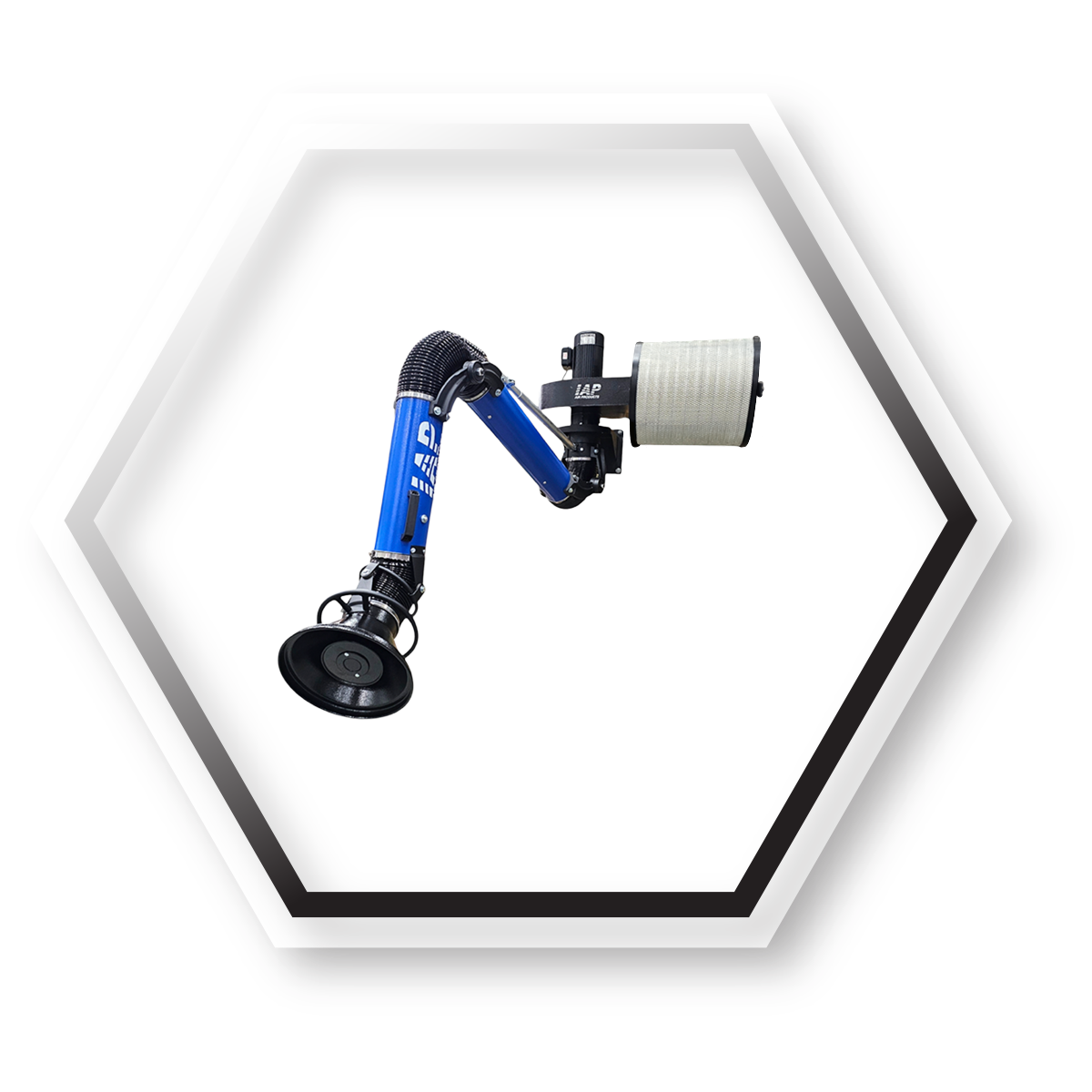

Fume extraction arm filtration or dual fume arm filtration

Fume Arm Filtration

Fume arm filtration or dual fume arm filtration is a great option to add source capture.

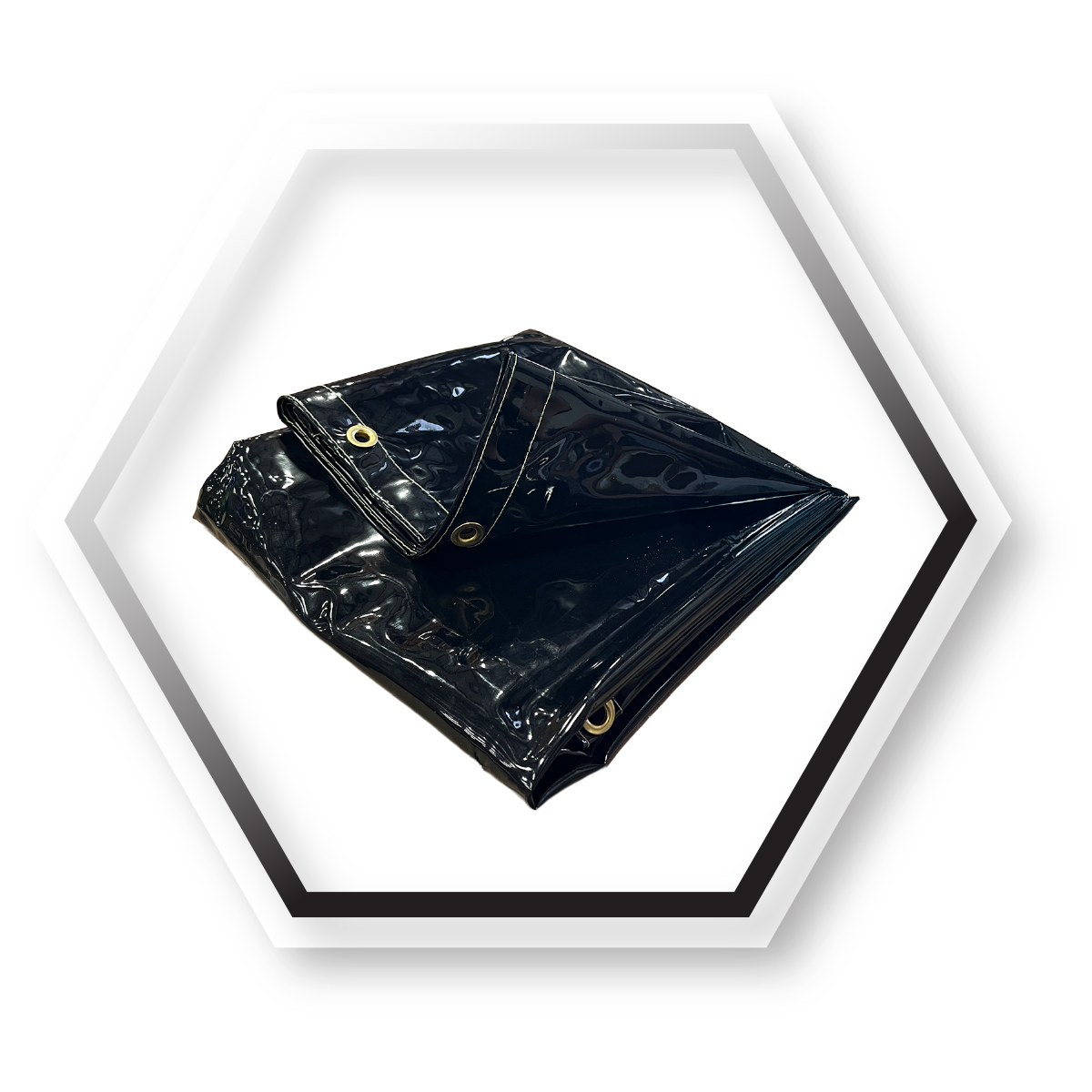

IAP provides weld curtains and brackets as accessory items

Accessories

Weld curtains are available. Plus brackets to support your source capture fume system.

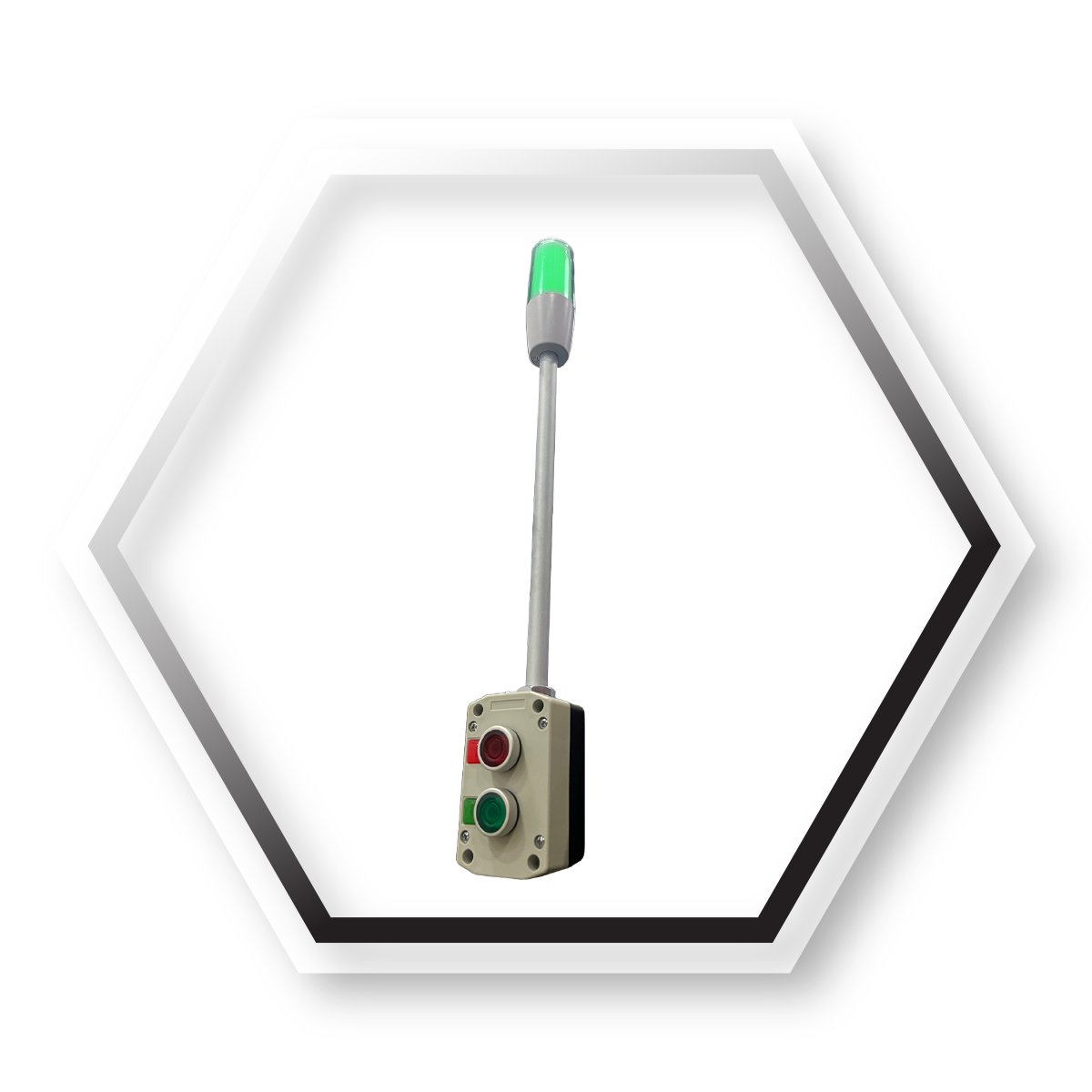

IAP Welding booths Safety Lights to help students

Safety Lights

Student safety alert lights mount easily and include green / red status.

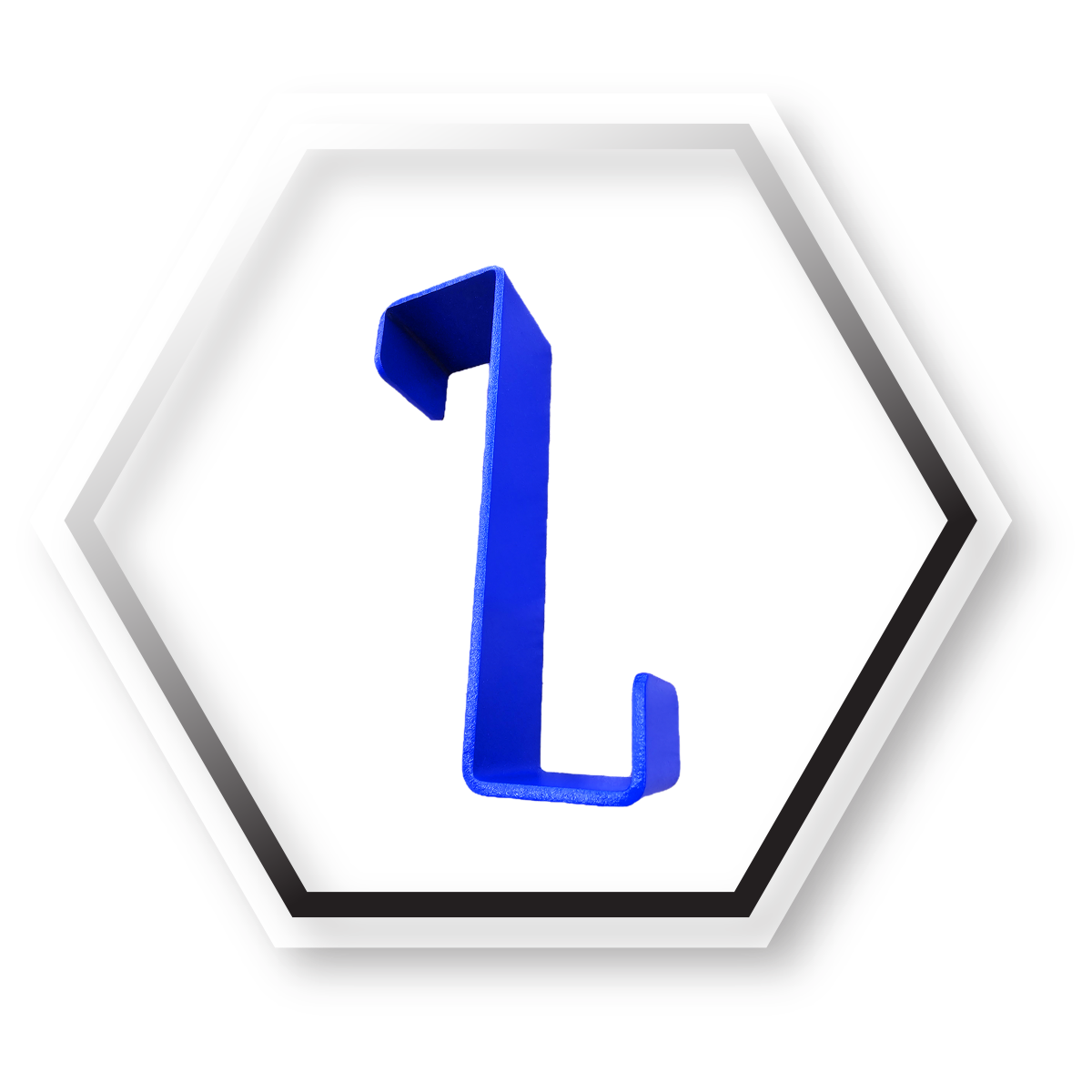

IAP provides J Hooks and LED lights as accessory items

Accessories

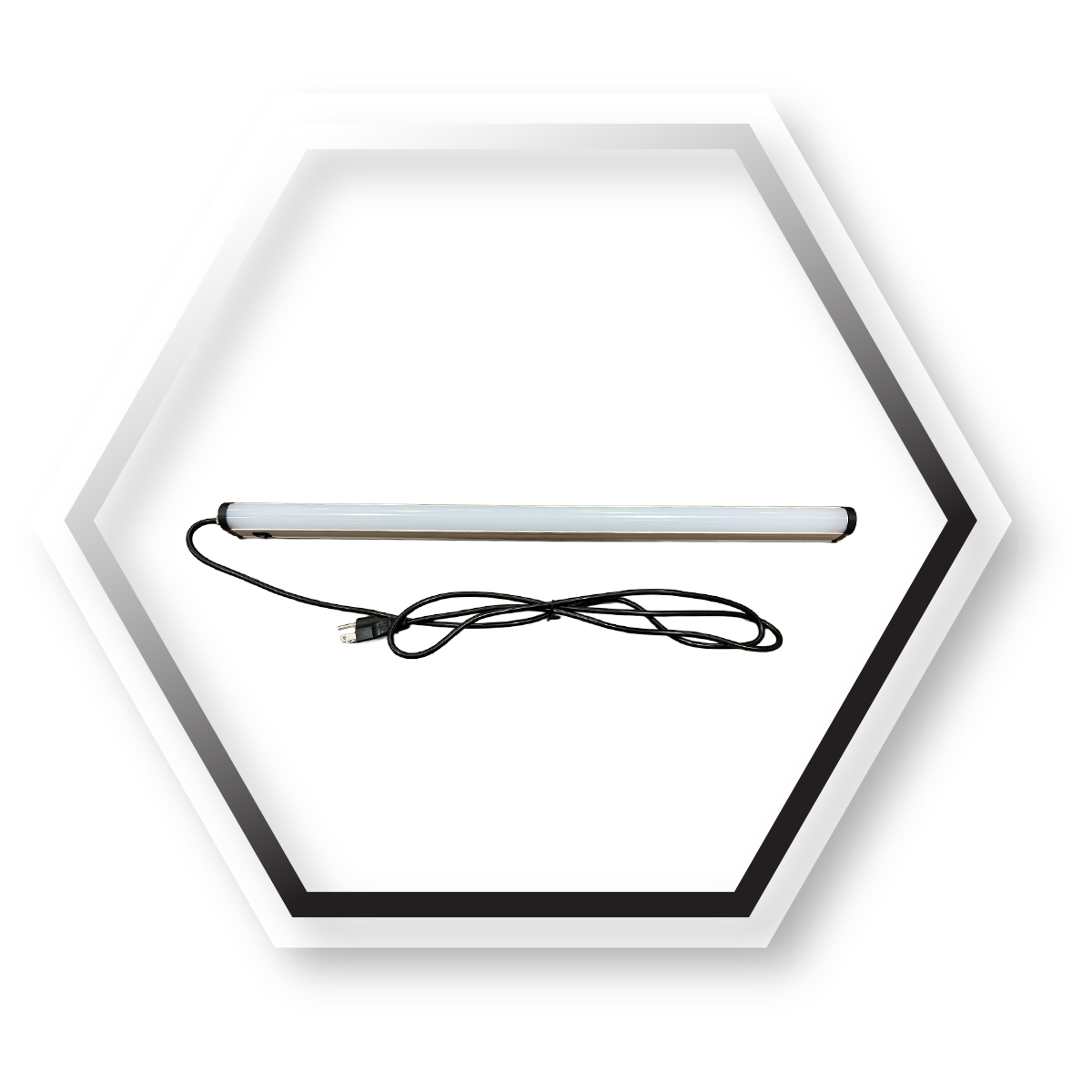

Optional accessories include; LED lights and J-Hooks to hang helmets, cords and other tools.

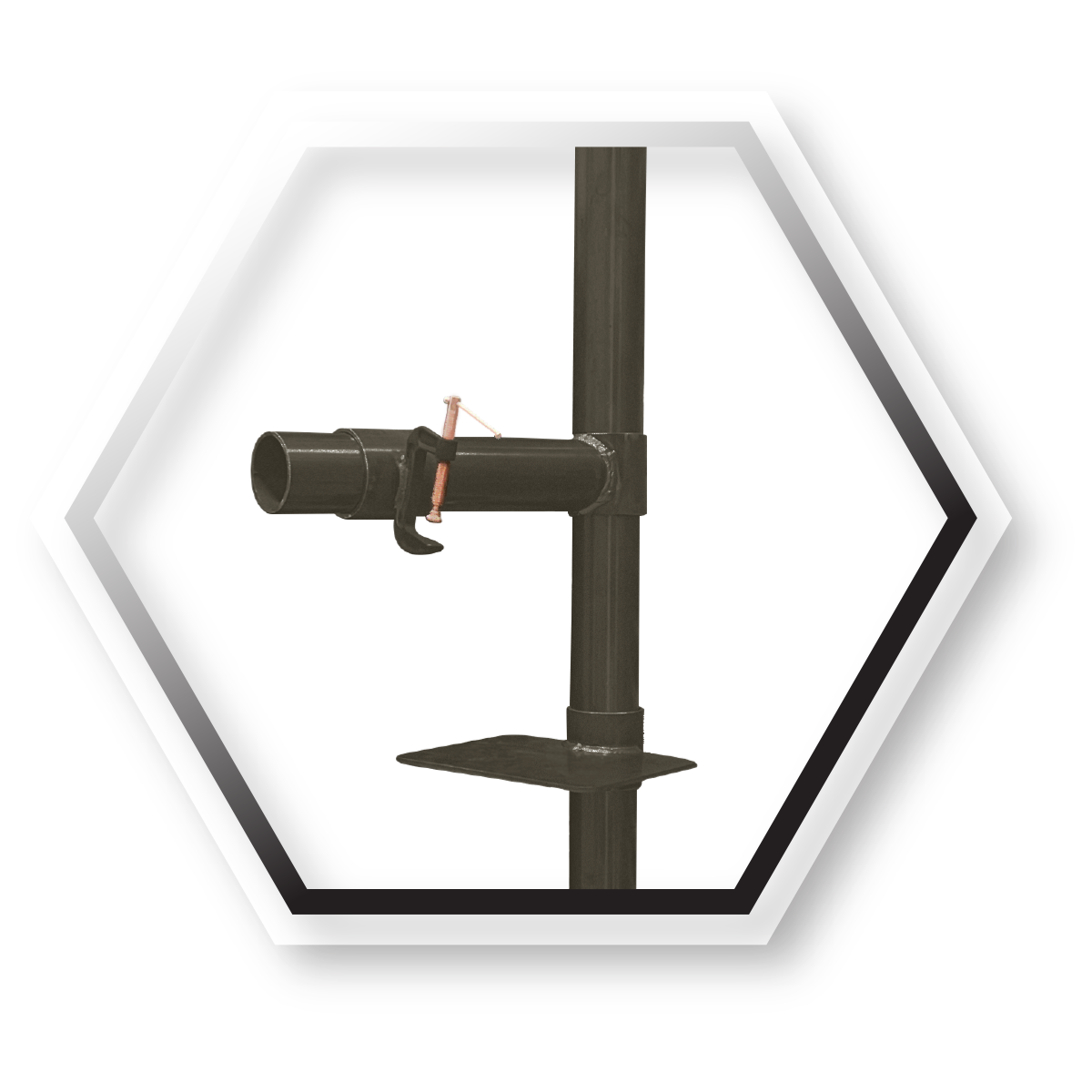

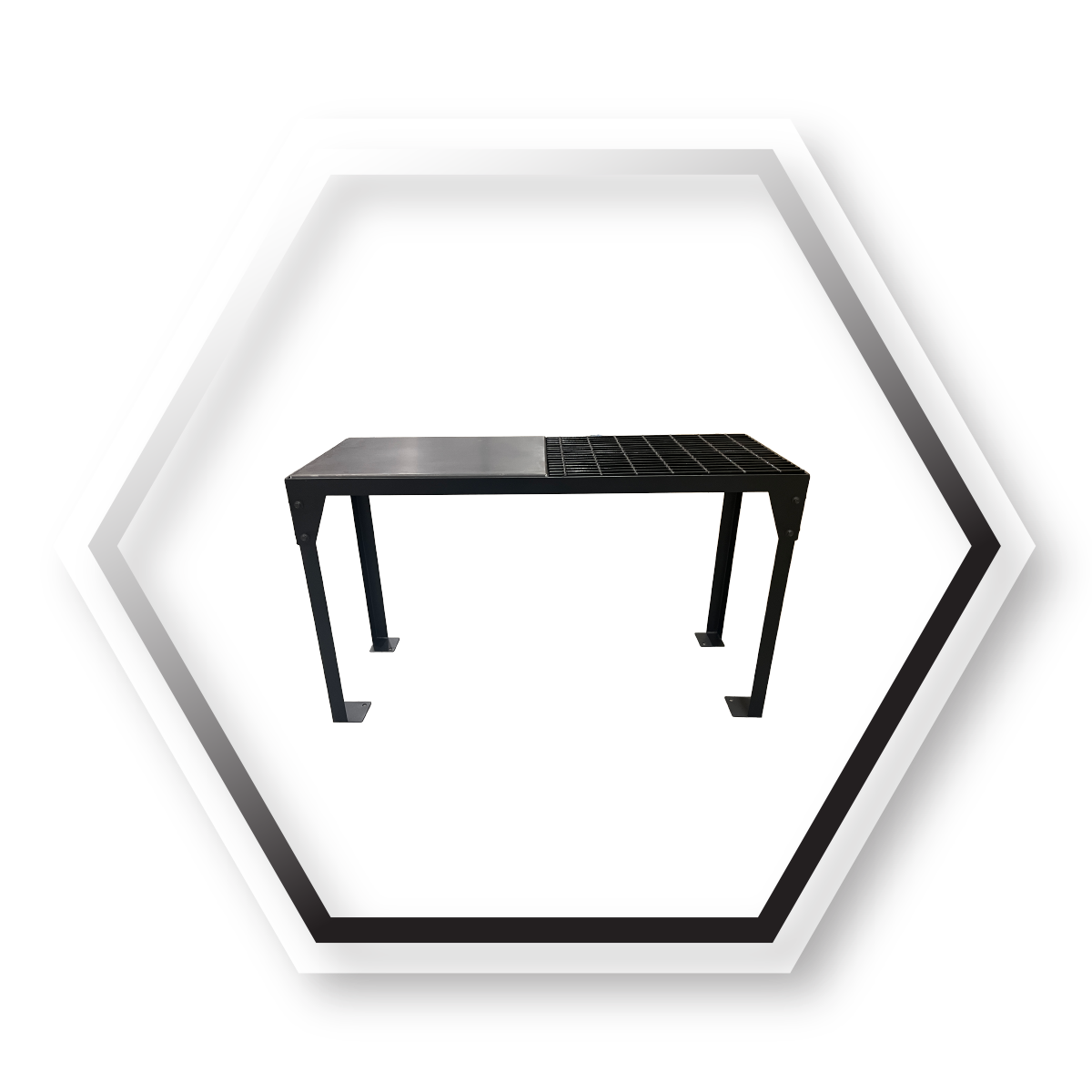

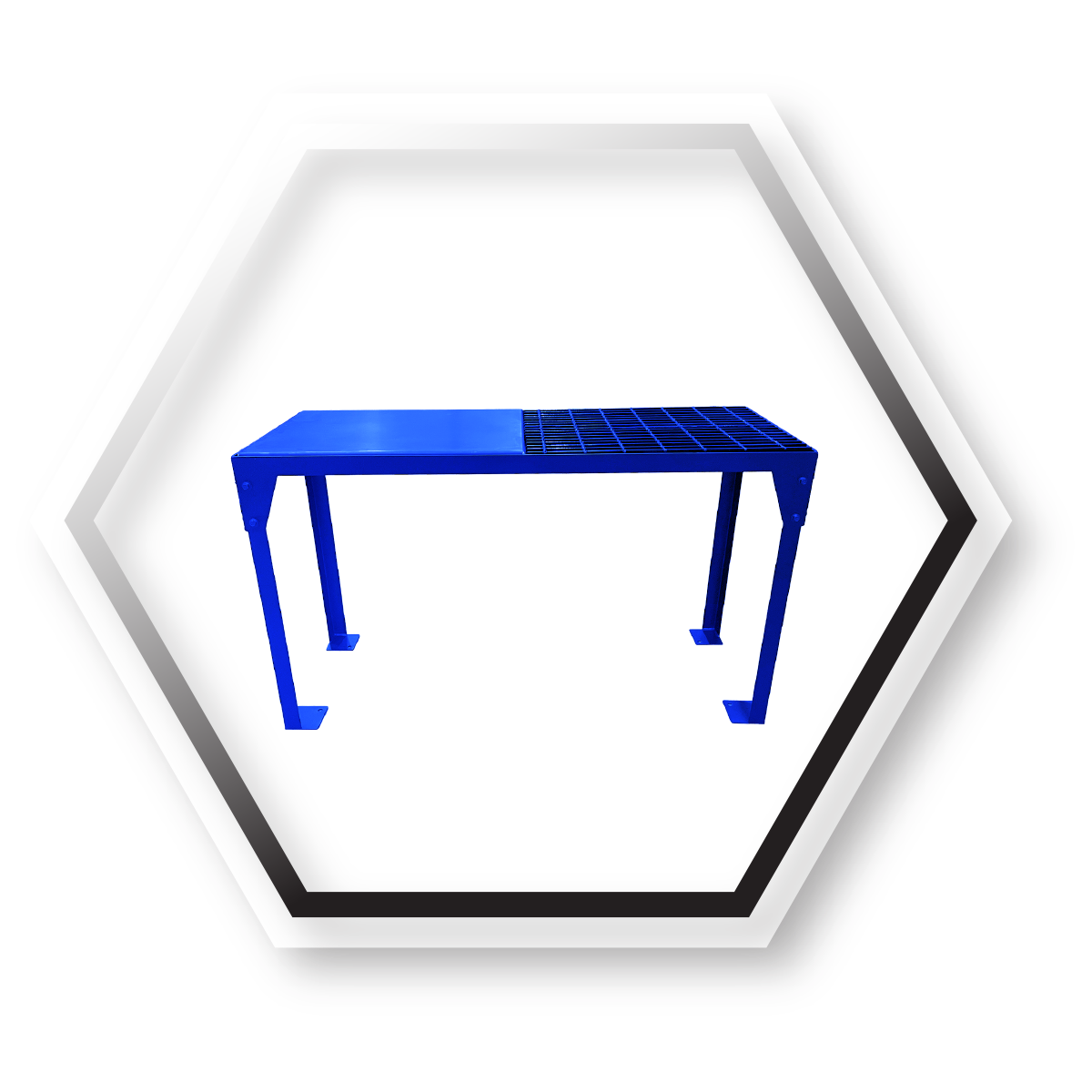

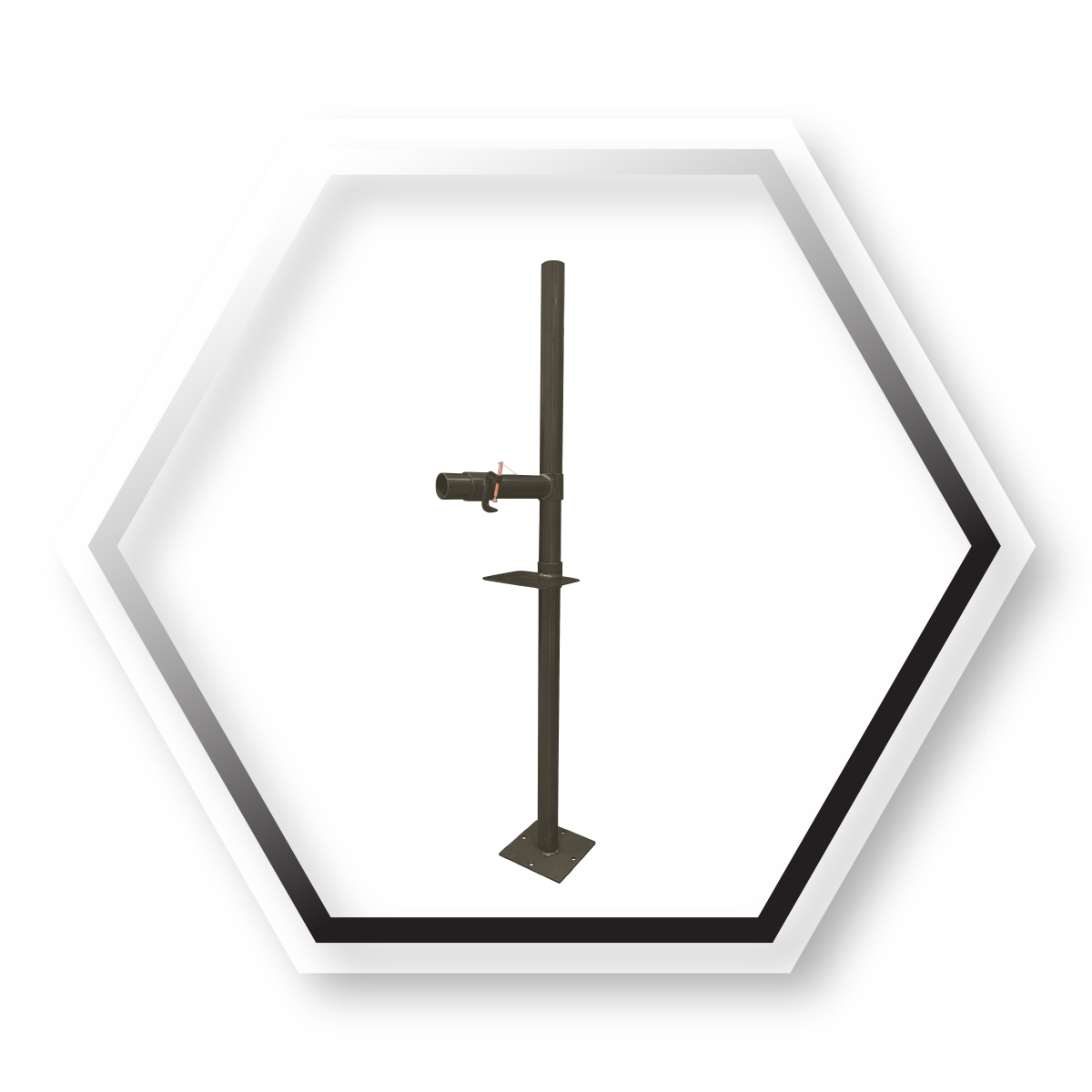

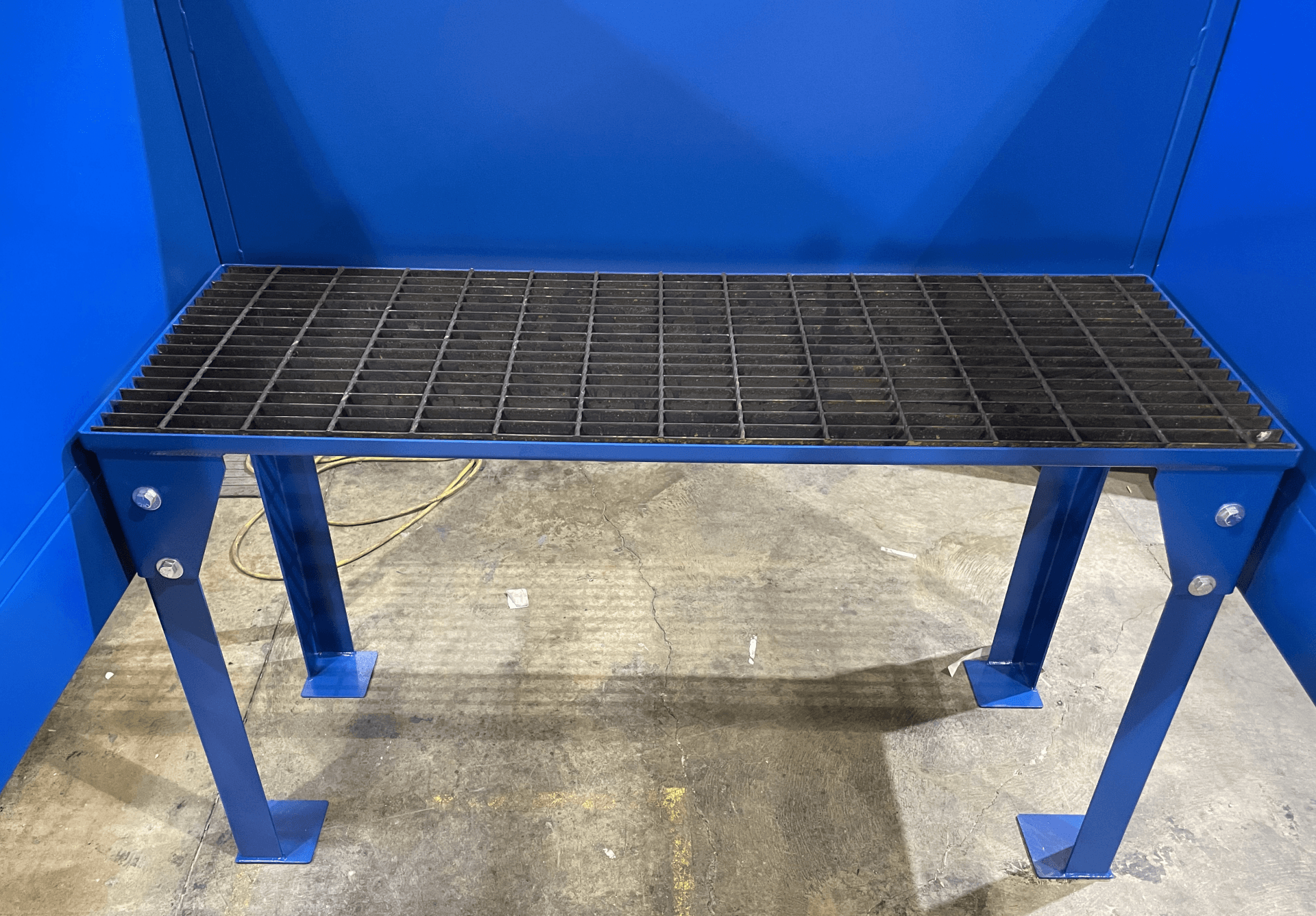

Stand alone tables with metal or grated tops, plus pipe weld stands are also available.
Fume extraction arm filtration or dual fume arm filtration is a great option to add source capture.

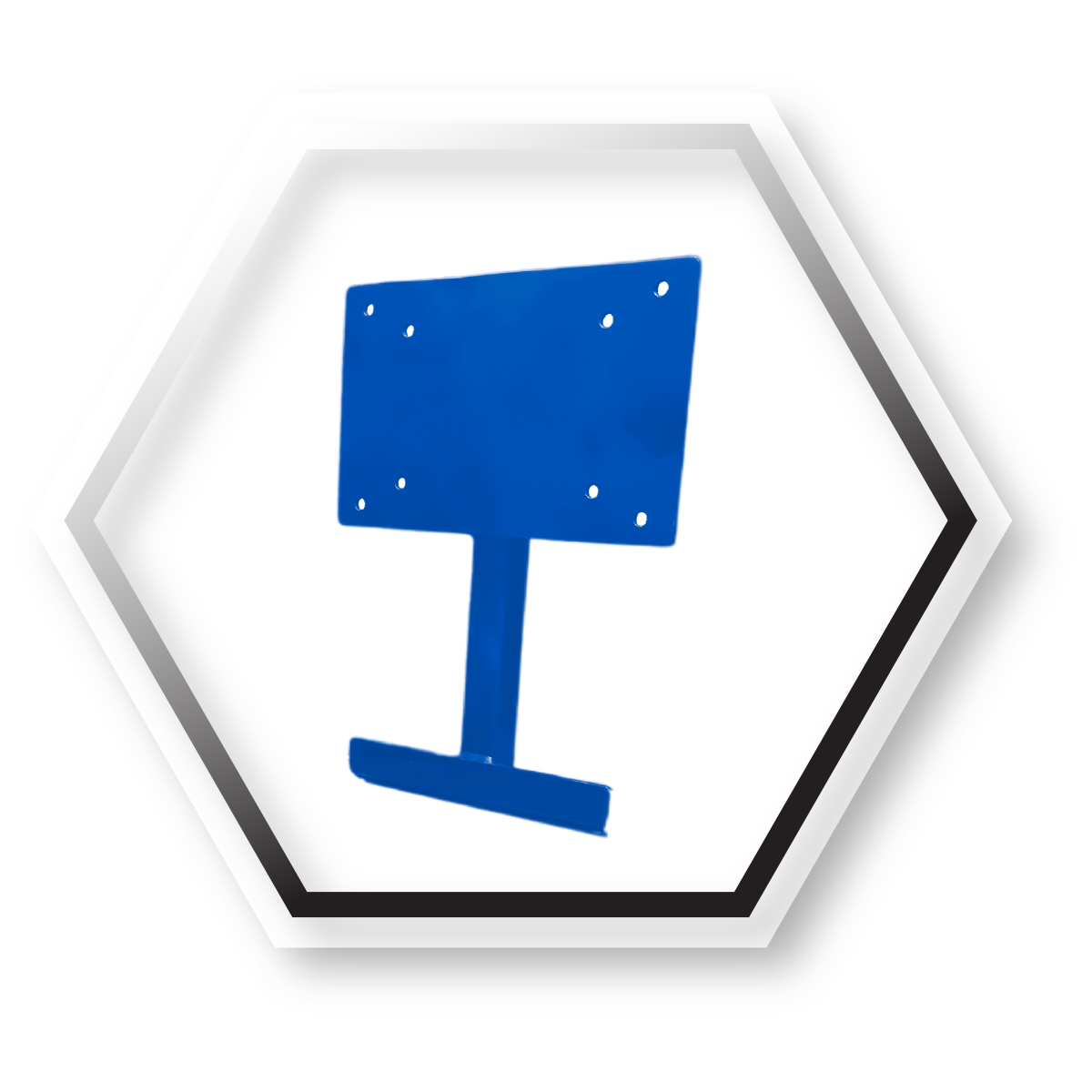

Brackets to support your source capture fume system.
Welding booths are designed for welding trade schools, technical colleges and smaller facilities needing a welding solution
Optional accessories include; LED lights and J-Hooks to hang helmets, cords and other tools.
Stand alone tables with metal or grated tops, plus pipe weld stands are also available.

Welding Booth Features & OPTIONS

INSTALLATION PICTURES

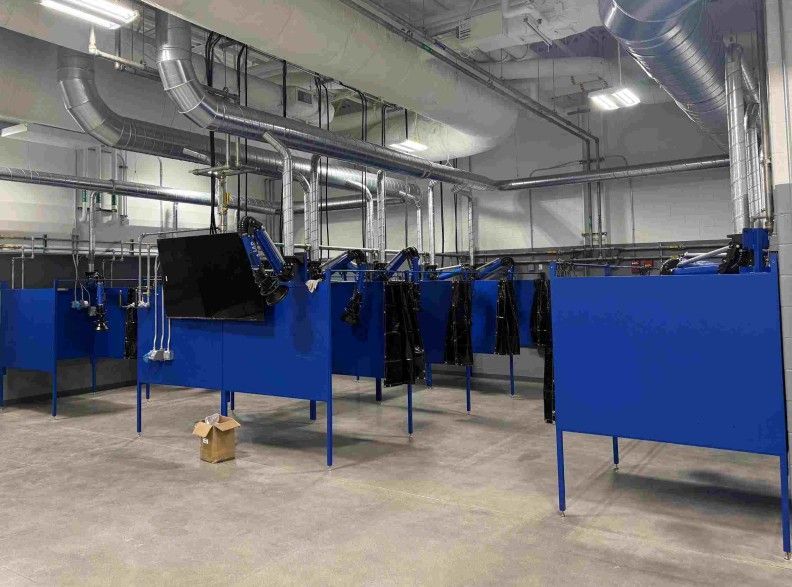

  • IAP-Weldshell-multiple-rows-of-weld-booths-in-a-trade-school
    Write your caption here
    Button

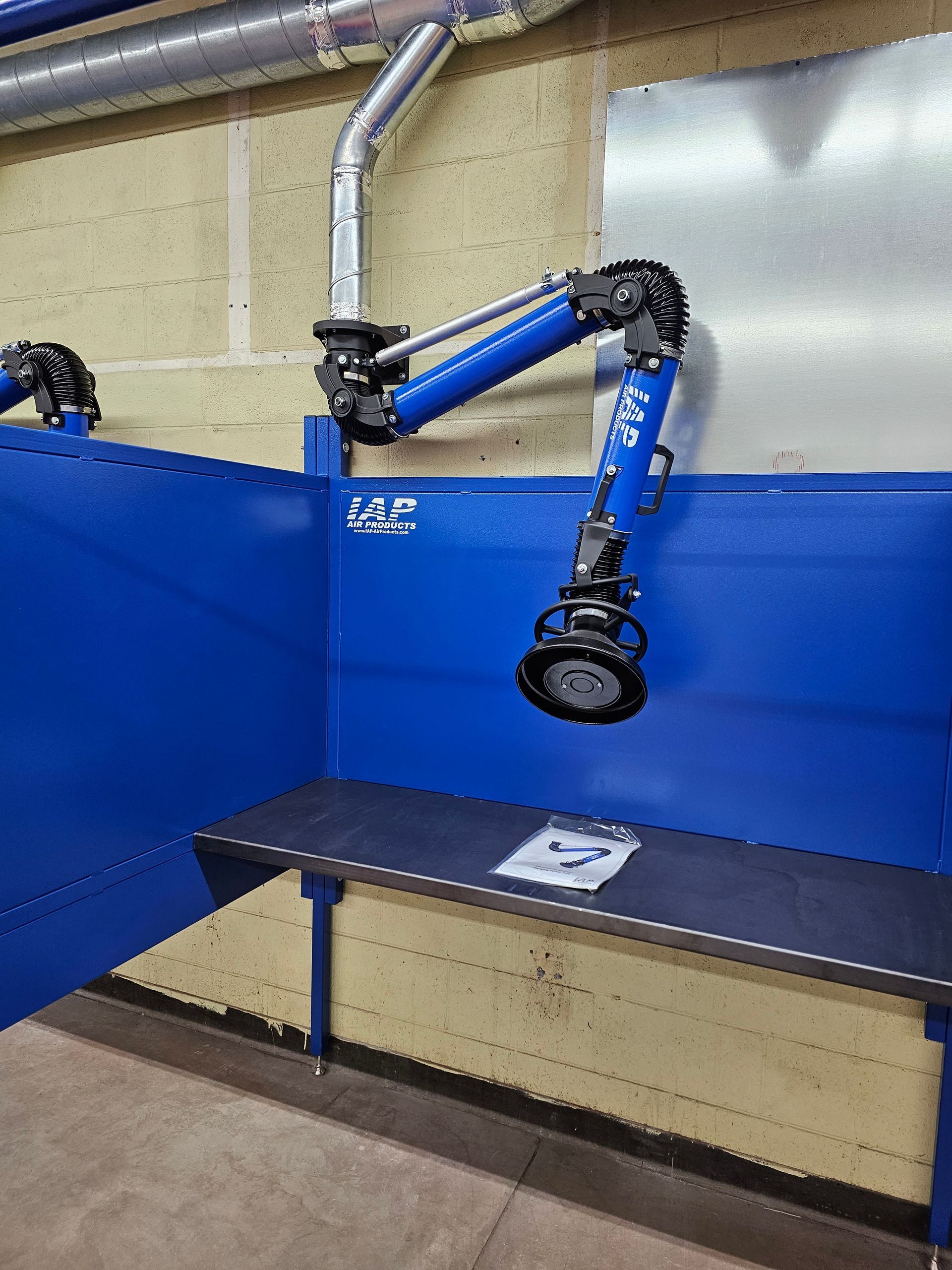

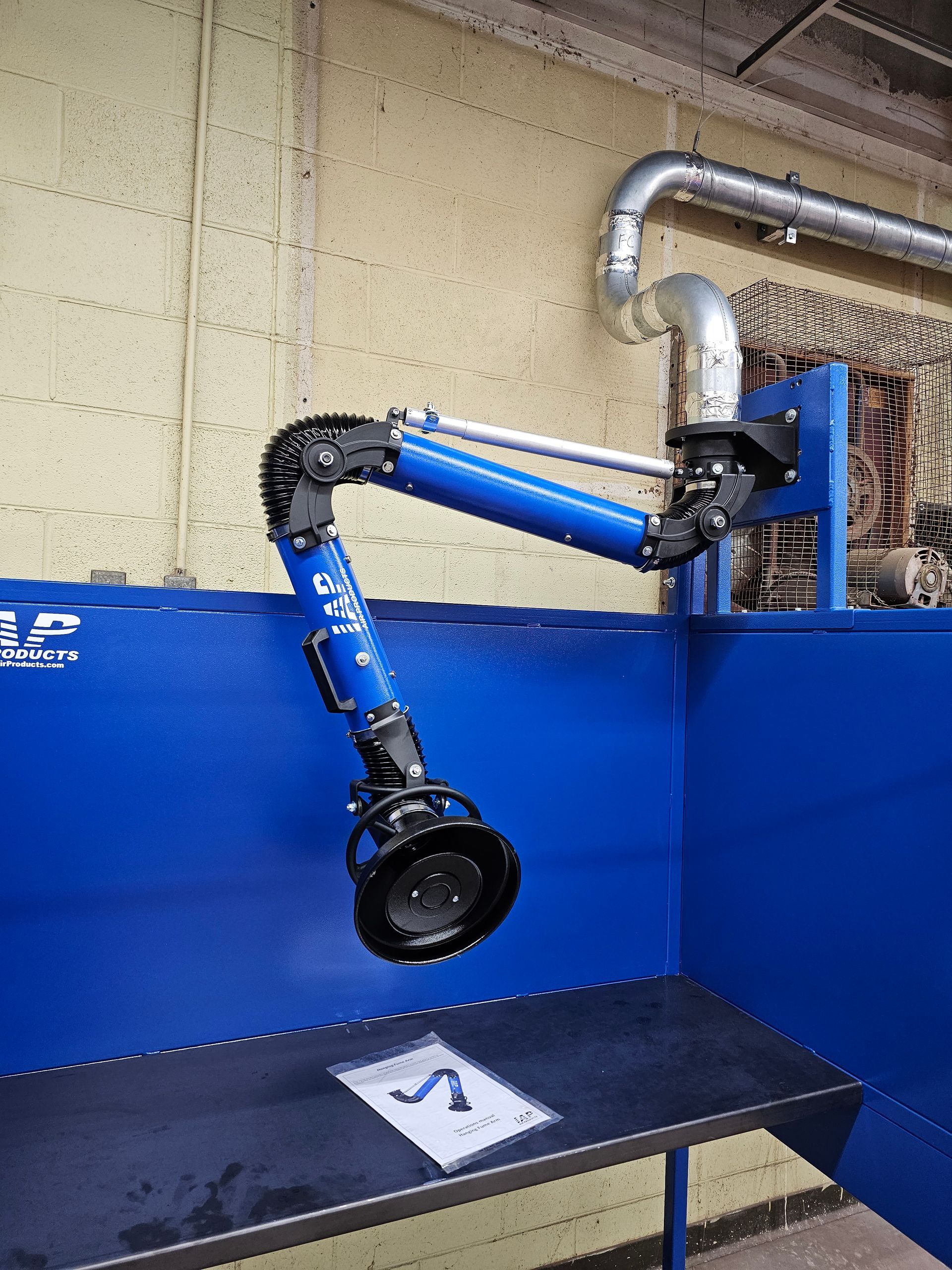

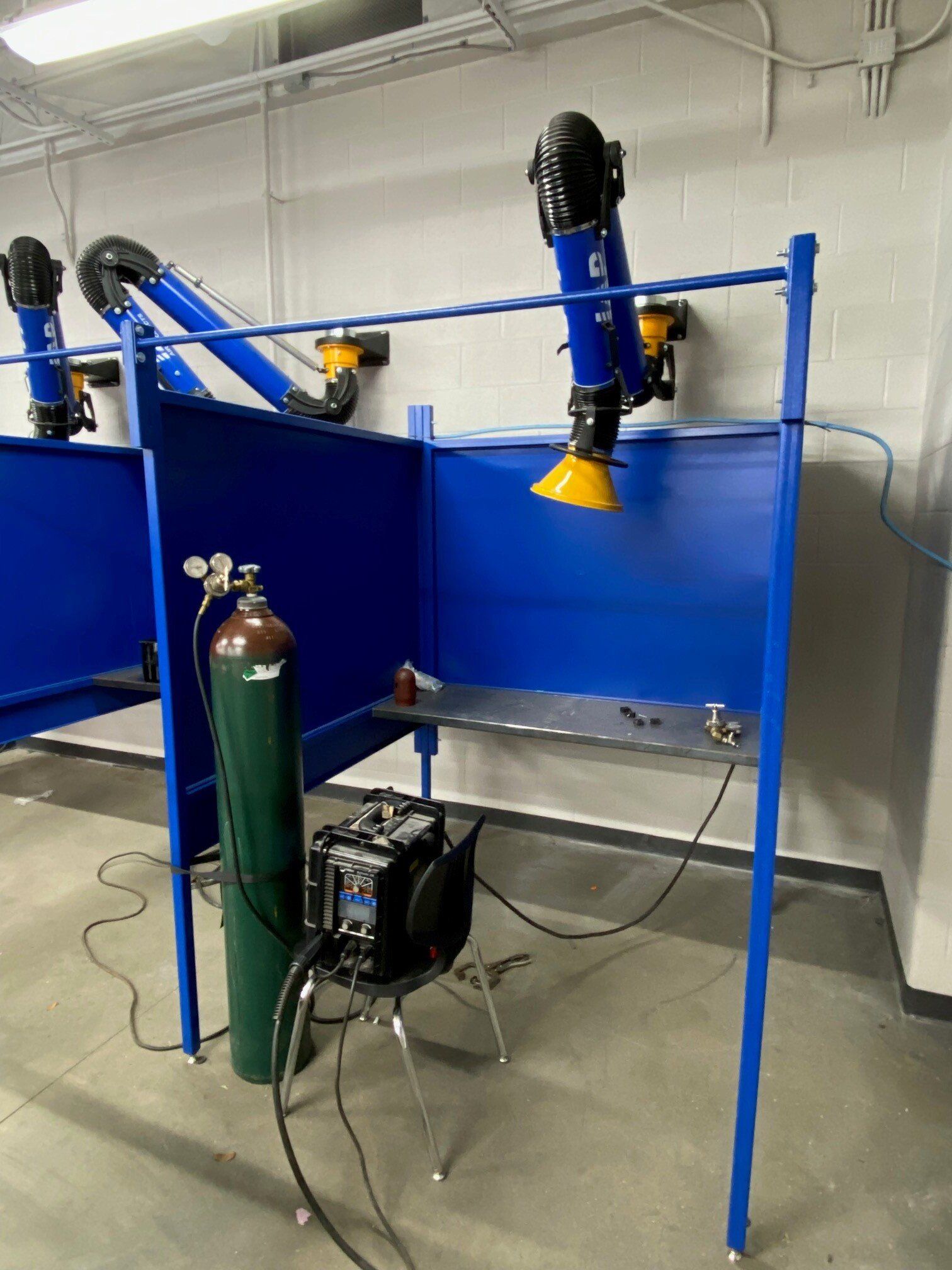

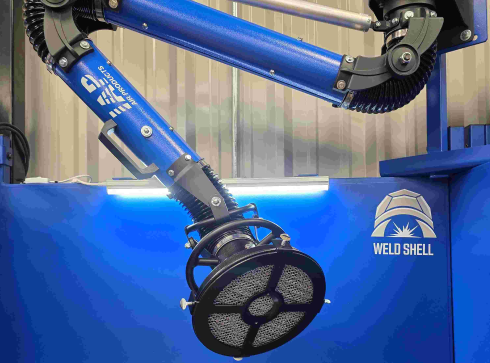

  • IAP-Weldshell-booth-and-fume-extraction-arm
    Write your caption here
    Button

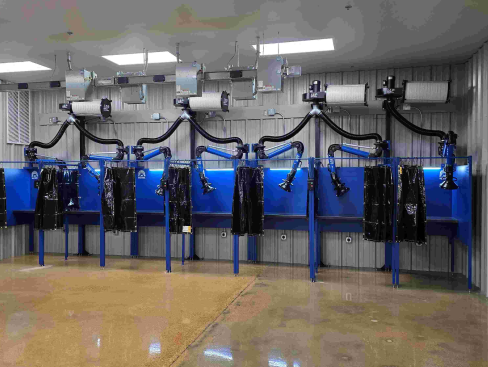

  • IAP-Weldshell-with-fume-extraction-in-a-trade-school
    Write your caption here
    Button

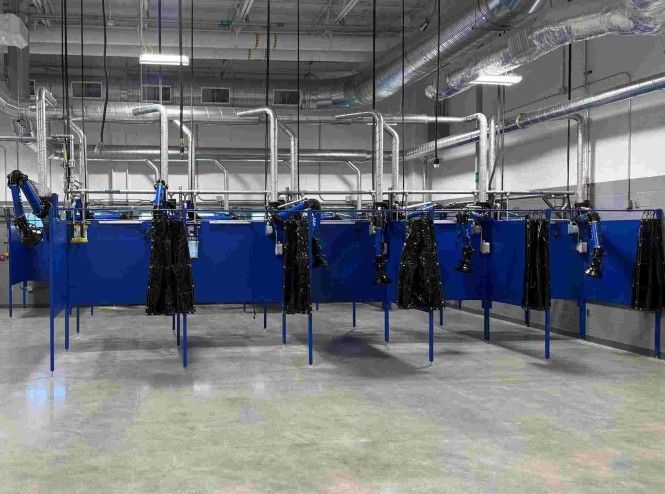

  • IAP-Weldshell-row-of-weld-booths-in-a-trade-school
    Write your caption here
    Button

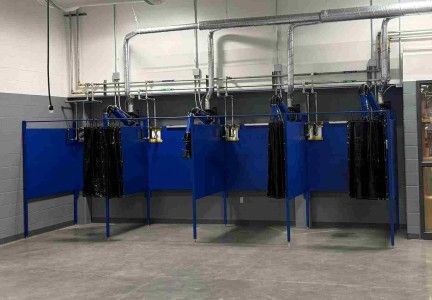

  • IAP-Weldshell-weld-booths-in-a-trade-school
    Write your caption here
    Button

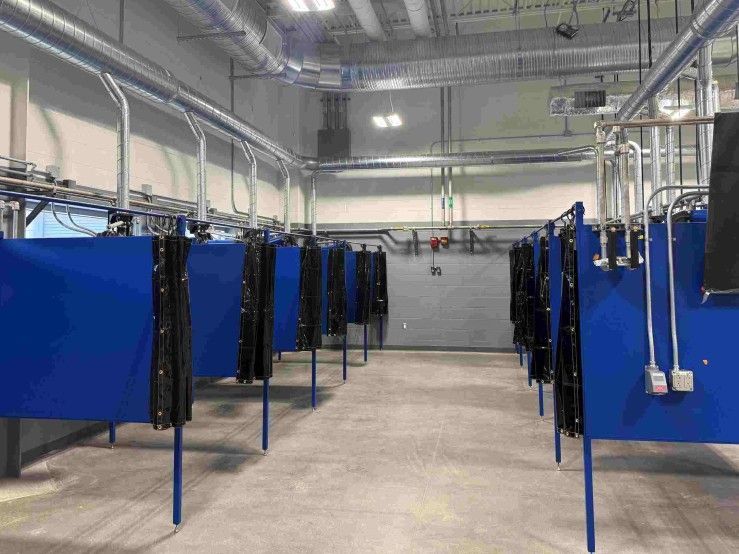

  • Weldshell-by-IAP-2-rows-of-weld-booths-in-a-trade-school
    Write your caption here
    Button

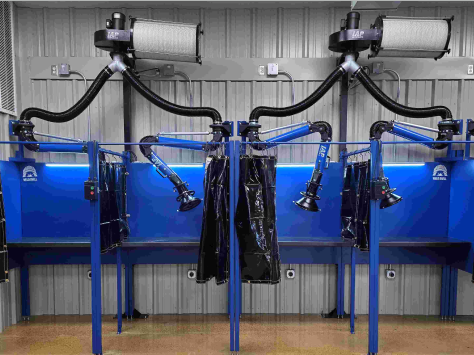

  • Weldshell-with-fume-extraction-in-a-trade-school
    Write your caption here
    Button

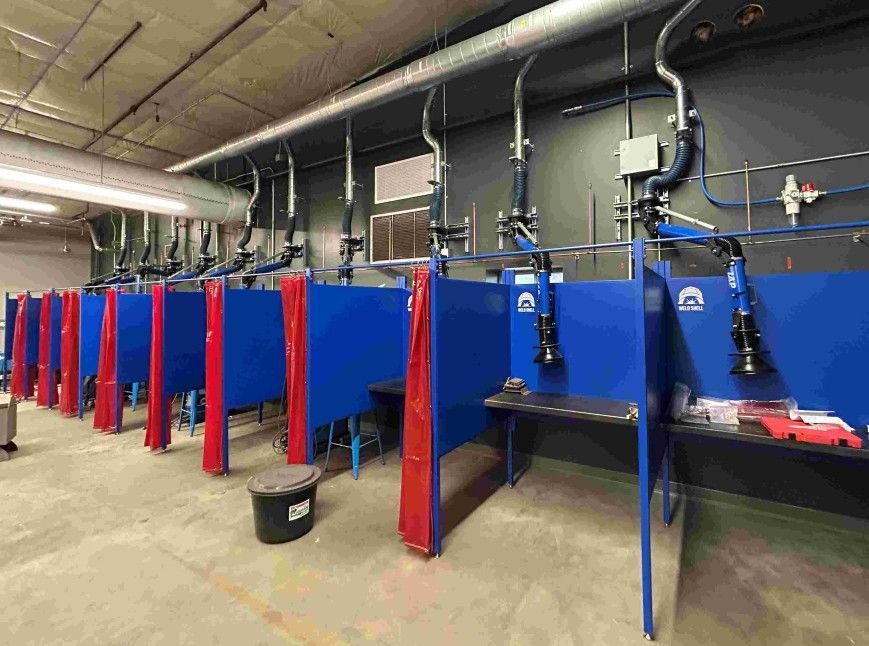

  • IAP-Weldshell-weld-booths
    Write your caption here
    Button

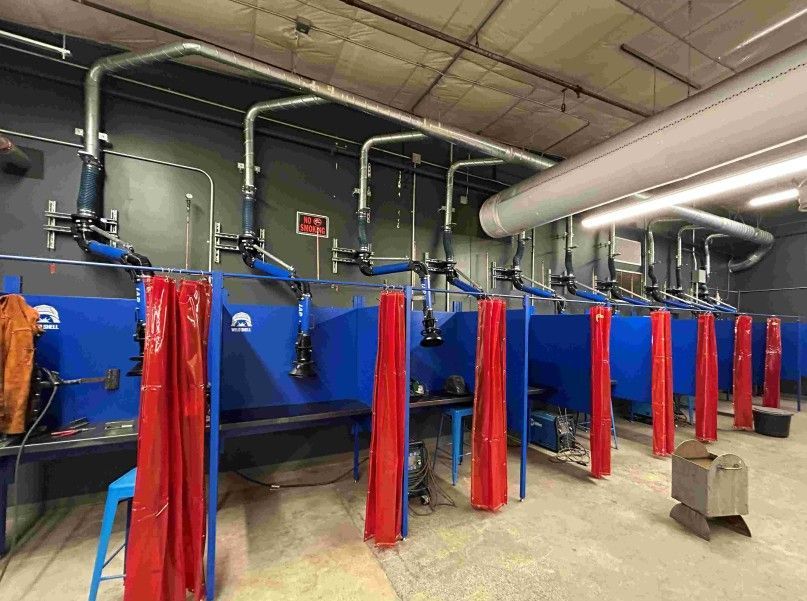

  • IAP-Weldshell-in-a-trade-school
    Write your caption here
    Button

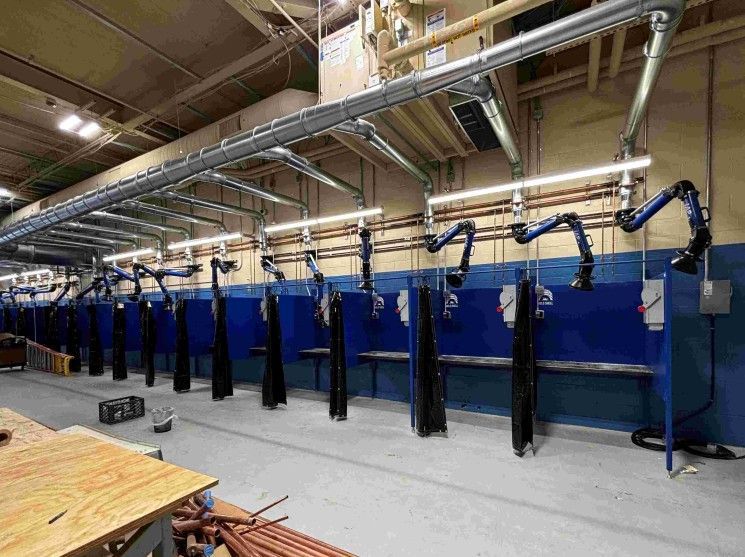

  • Weldshell-by-IAP-with-fume-extraction
    Write your caption here
    Button

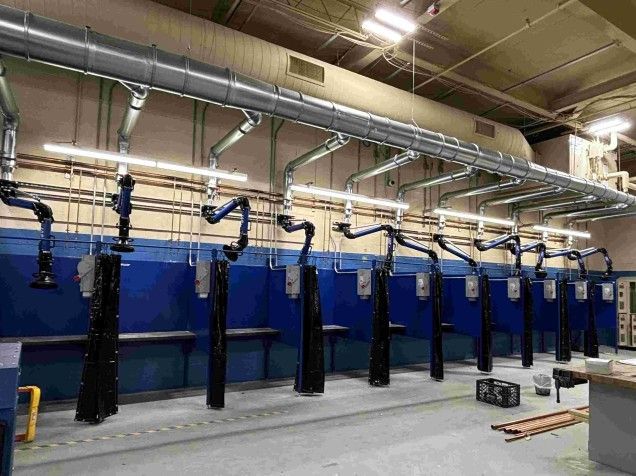

  • Weldshell-with-central-system-for-source-capture
    Write your caption here
    Button

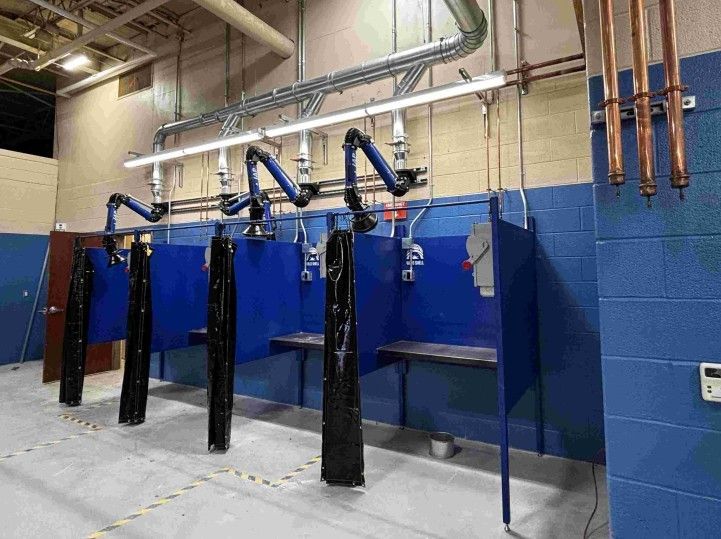

  • Weldshell-with-source-capture-fume-extraction
    Write your caption here
    Button

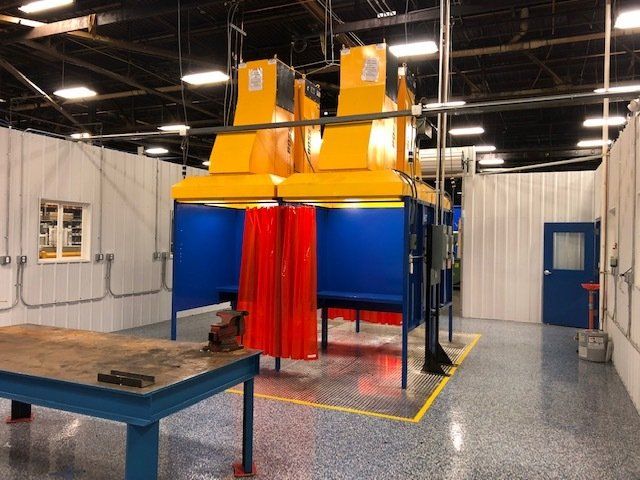

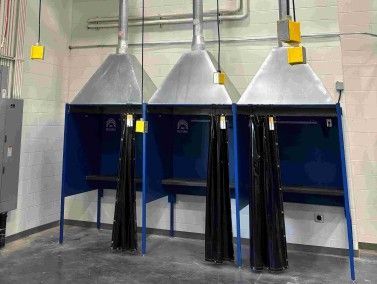

  • Weldshell-welding-booths-with-fume-hoods

    Slide title

    Write your caption here
    Button

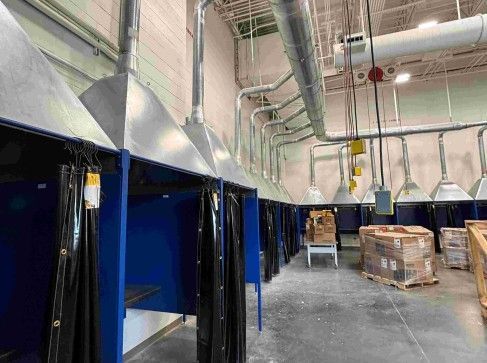

  • Weldshell-by-IAP-welding-booths-with-fume-hoods
    Write your caption here
    Button

WHAT OUR CUSTOMERS SAY

PROVIDING SOLUTIONS FOR TRADE & HIGH SCHOOLS

  • IAP Weld Booth Jemison HS

    Slide title

    Write your caption here
    Button
  • Oakfield-Alabama Central School District with IAP weld booths, well shell
    Write your caption here
  • Weld booth Salmon River SD
    Write your caption here
  • Northwest Mississippi Community College weld booths
    Write your caption here
  • Weld Booth for Warwick High School
    Write your caption here
  • IAP Weld Booth North Central

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Roseville HS

    Slide title

    Write your caption here
    Button
  • IAP Weld Booths Livingston Academy

    Slide title

    Write your caption here
    Button

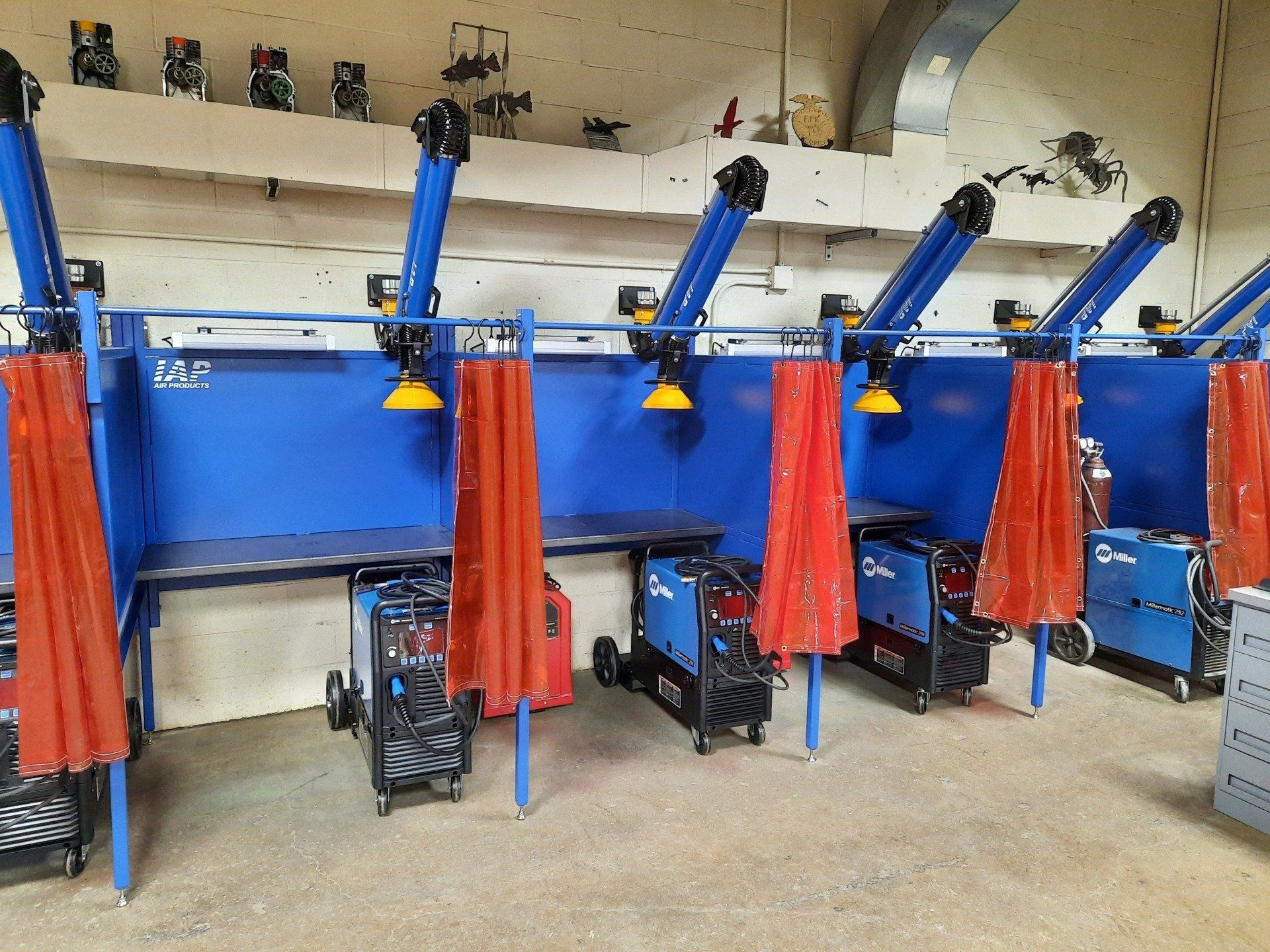

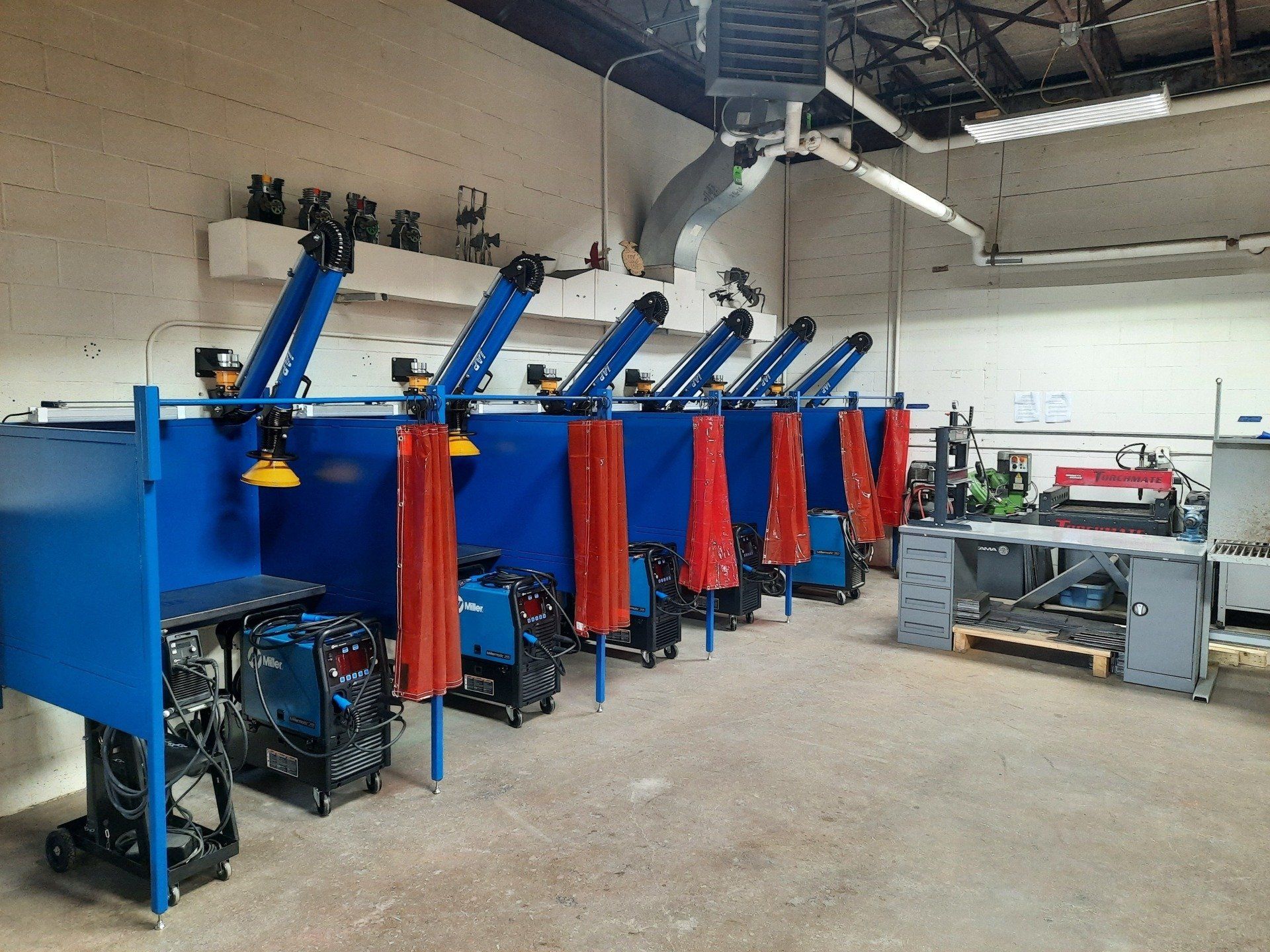

  • IAP Weld Booth El Paso Gridley HS

    Slide title

    Write your caption here
    Button
  • Weld booths Navarro ISD
    Write your caption here
  • IAP Weld Booths for schools, Brandon Valley
    Write your caption here
  • Galaxy Felton Grove HS weld shell weld booth
    Write your caption here
  • IAP Weld Booth Fulton City HS

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Independence HS

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Old Colony

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Hancock County HS

    Slide title

    Write your caption here
    Button
  • Weld booth for schools - Sierra Blanca
    Write your caption here
  • Weld booths for East Central High School
    Write your caption here
  • IAP Weld Booth North Salinas HS

    Slide title

    Write your caption here
    Button
  • Mantachie High School welding booth
    Write your caption here
  • Catawba Valley College welding booths
    Write your caption here
    Button
  • IAP Weld Booth Lancaster HS

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Passaic County Tech

    Slide title

    Write your caption here
    Button
  • Wilton Public School weld booth
    Write your caption here
  • Weld booth for schools, Tioga HS
    Write your caption here
  • IAP Weld Booth Delhi Charter

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Bon Homme School District

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Red Wing HS

    Slide title

    Write your caption here
    Button
  • Trinity Area School District weld booth by IAP
    Write your caption here
  • West Carroll Parish School welding booth
    Write your caption here
  • West Valley School District weld booths
    Write your caption here
  • West Greene High School welding booths
    Write your caption here
    Button
  • IAP Weld Booth Kewanee HS

    Slide title

    Write your caption here
    Button
  • Marion Technical College - Weld shell weld booths
    Write your caption here
  • Allen Park HS weld booths
    Write your caption here
    Button
  • Weld booth Northern Cambria School District
    Write your caption here
  • IAP Weld Booth Latta HS

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Dauphin Tech

    Slide title

    Write your caption here
    Button
  • IAP Weld Booth Ohio Valley

    Slide title

    Write your caption here
    Button
  • West Burlington School district weld booths
    Write your caption here
  • IAP Weld Booth Elk Point
    Write your caption here
  • Huntsville Center for Technology School Logo
    Write your caption here
    Button

Why Choose WELDSHELL Welding Booths?

Welding booths are built for schools & industry

WELDSHELL welding booths are designed for demanding welding environments, from high school and technical education welding labs to industrial manufacturing facilities. Heavy-duty construction and practical features make WELDSHELL a durable solution for everyday welding applications.


Welding booths in stock & ready to ship

We keep popular WELDSHELL welding booth sizes and components in stock at our Tennessee facility. That means you don't have to wait months for a custom welding booth system to be manufactured. Our goal is simple: get your welding booths shipped and your project moving as quickly as possible.


Easy-to-install modular welding booth systems

WELDSHELL uses a modular welding booth design that makes installation and expansion simple. Shared side panels allow multiple welding booths to be installed in rows while reducing unnecessary material between adjacent booths. Pre-installed rivet nuts and included mounting hardware also make assembly easier.


Designed for welding fume extraction

WELDSHELL welding booths are designed with welding fume extraction in mind. Accessories such as fume arm brackets, lighting kits, J-hooks and welding curtains can be integrated into the booth system to create a complete welding workstation. Pair WELDSHELL with IAP fume extraction equipment for a complete welding fume control solution.


Backed by real welding equipment experts

When you have questions about welding booths, welding fume extraction, sizing, installation or accessories, you can talk to a real person. Our sales team understands welding environments and can help you put together the right booth configuration for your school, training facility or manufacturing application.


Not sure what you need?

Share your layout → We'll help figure out the best configuration of weld booths for your facility and help select the right fume extraction products as well.

FAQ's

  • What is a welding booth or WELDSHELL?

    A welding booth is a dedicated workspace designed for welding and fabrication. Welding booths provide defined work areas for individual welders, help organize welding shops and training facilities and can be equipped with welding curtains, lighting, work tables, and source-capture fume extraction to help control welding fumes.

  • What sizes are available for welding booths?

    WELDSHELL welding booths are available in 4' x 4', 5' x 5' & 6' x 6' sizes. These standard sizes accommodate a variety of welding applications, from compact student workstations to larger industrial welding areas. Custom layouts and configurations are also available for facilities with unique space requirements.

  • Do welding booths include welding fume extraction?

    A welding booth does not automatically remove welding fumes. For effective welding fume control, the booth can be paired with source-capture fume extraction such as a welding fume extraction arm. IAP can configure WELDSHELL booths with compatible fume extraction systems to help capture welding fumes at their source.

  • What is the difference between a welding booth and a welding cell?

    A welding booth is typically an individual, defined welding workstation, while a welding cell can refer to a larger or more specialized production area containing welding equipment, fixtures, ventilation and other components. The terms are sometimes used interchangeably, but the appropriate configuration depends on the application, available space and welding process.

  • How do you control welding fumes in a welding booth?

    The most effective approach is generally source capture, which removes welding fumes close to where they are generated before they spread throughout the workspace. Welding fume extraction arms, portable fume extractors or centralized filtration systems can be used depending on the number of welding stations, welding processes, and facility requirements.

  • Can welding booths be customized?

    Yes. Welding booths can be customized to accommodate different shop layouts, booth quantities, heights, accessories, work tables, curtains, lighting and fume extraction requirements. WELDSHELL can be installed as individual booths or configured into rows and larger welding lab layouts.

  • Are welding booths good for high schools and welding schools?

    Yes. Welding booths are commonly used in high schools, career and technical education (CTE) programs, technical colleges, community colleges and professional welding schools. WELDSHELL booths are designed to create organized, durable welding stations that can be configured for individual students, instructors or larger welding labs.

  • Can a fume extraction arm be installed on a welding booth?

    Yes. WELDSHELL welding booths can be configured with fume extraction arm brackets, allowing a source-capture welding fume extraction arm to be positioned near the welding operation. IAP also offers complete fume extraction systems, including filtration units and single or multiple-arm configurations.

  • What accessories are available for welding booths?

    WELDSHELL welding booth accessories include welding curtains, fume arm brackets, LED lighting, J-hooks, pipe weld stands, welding tables and other workstation accessories. Fume extraction systems can also be integrated into the booth layout to provide source capture at individual welding stations.

  • Can I purchase a complete welding lab from IAP Air Products?

    Yes. IAP Air Products can help configure complete welding lab systems, including WELDSHELL welding booths, welding fume extraction arms, filtration systems, lighting, welding tables, curtains and other accessories. Whether you need a single welding station or a complete school or industrial welding lab, IAP can help develop a configuration around your space and application.
